Description
Brand - DODGE
Item Number - 128805 DODGE - FB-DL-107
Category - D-LOK® Ball Bearings (DL FB Normal Duty 3-Bolt Flange Bracket Bearings)
Series - 207
Shaft Size (inch) - 1.4375
Description - FB-DL-107
Weight (lbs) - 1.75

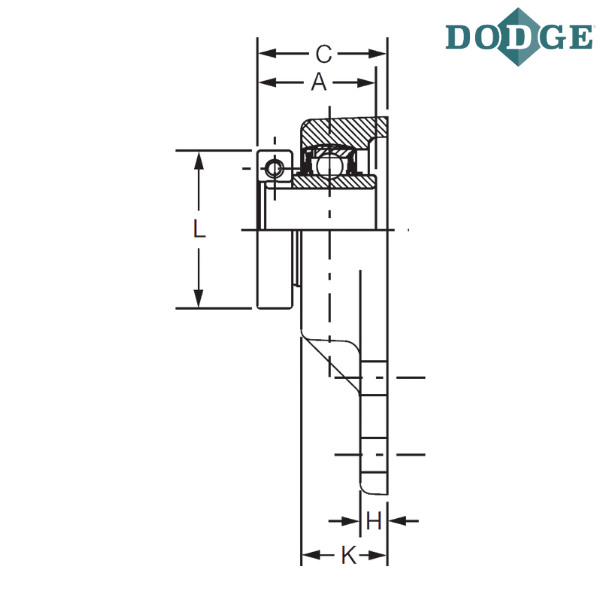

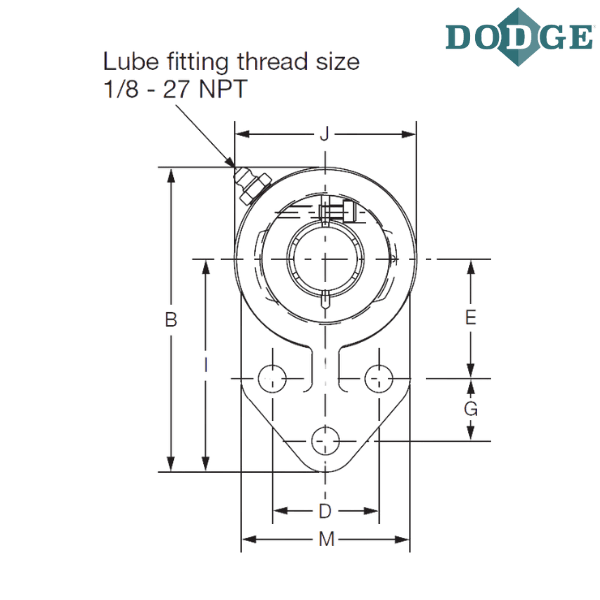

Length Through Bore (A) inch - 1.75
Overall Length (B) inch - 6.13
Thickness (C) inch - 1.91
Bolt Center to Center Length (D) inch - 2
E (inch) - 2.37
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.25
H (inch) - 0.5
I (inch) - 4.25
J (inch) - 3.75
K (inch) - 1.31
L (inch) - 2.69
M (inch) - 3.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FB - Flanged bracket
DL - Wide inner ring, normal duty, concentric clamp collar

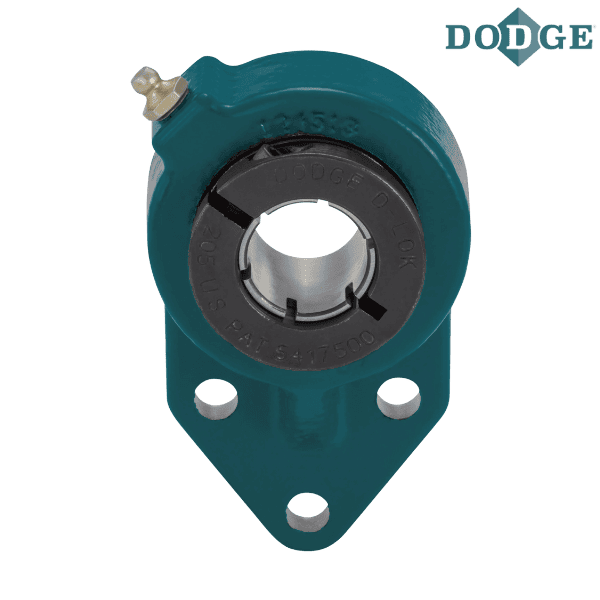

** Images are for representation purposes only
