Description
Brand - DODGE
Item Number - 128801 DODGE - FB-DL-103
Category - D-LOK® Ball Bearings (DL FB Normal Duty 3-Bolt Flange Bracket Bearings)
Series - 206
Shaft Size (inch) - 1.1875
Description - FB-DL-103
Weight (lbs) - 1.45

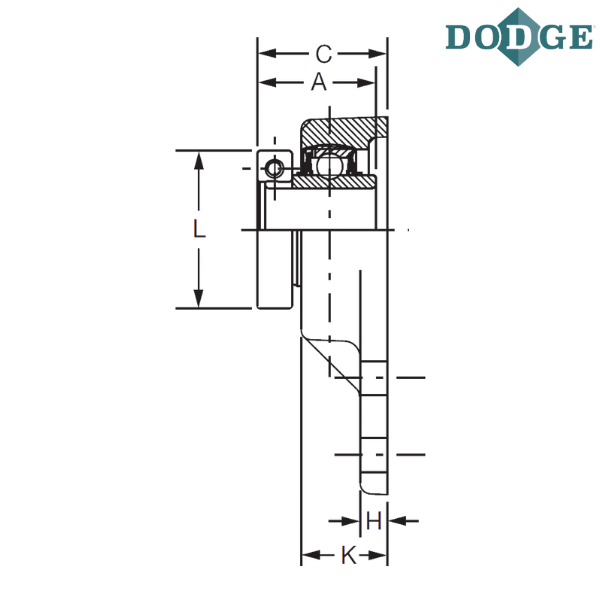

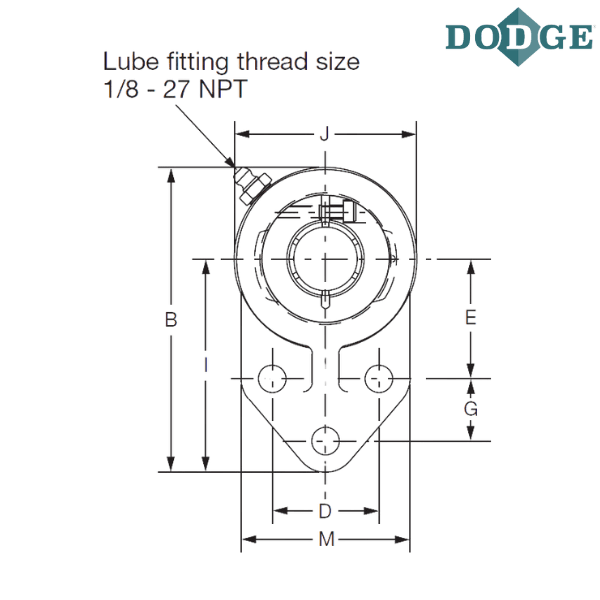

Length Through Bore (A) inch - 1.56
Overall Length (B) inch - 5.38
Thickness (C) inch - 1.69
Bolt Center to Center Length (D) inch - 1.88
E (inch) - 2.06
F-Bolt Diameter (inch) - 0.375
G (inch) - 1.25
H (inch) - 0.38
I (inch) - 3.75
J (inch) - 3.25
K (inch) - 1.13
L (inch) - 2.22
M (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FB - Flanged bracket
DL - Wide inner ring, normal duty, concentric clamp collar

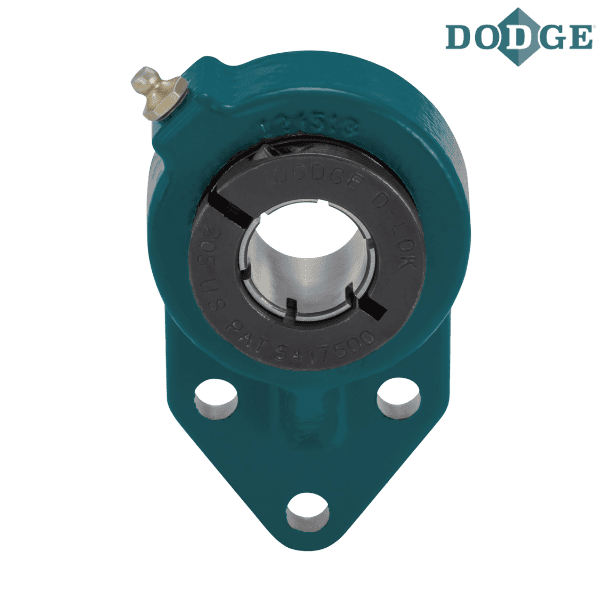

** Images are for representation purposes only
