Description
Brand - DODGE
Item Number - 128796 DODGE - FB-DL-012
Category - D-LOK® Ball Bearings (DL FB Normal Duty 3-Bolt Flange Bracket Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - FB-DL-012
Weight (lbs) - 0.8

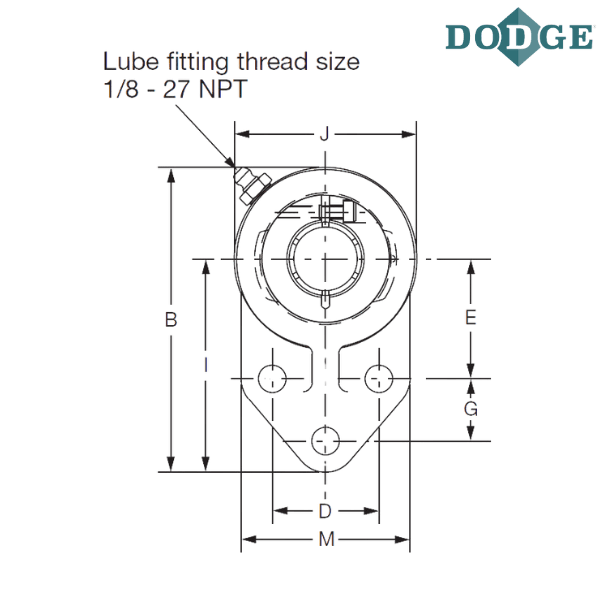

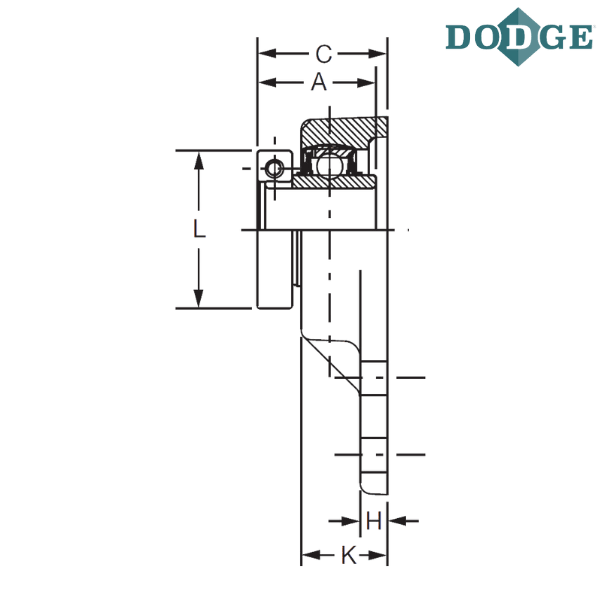

Length Through Bore (A) inch - 1.28
Overall Length (B) inch - 4.25
Thickness (C) inch - 1.39
Bolt Center to Center Length (D) inch - 1.5
E (inch) - 1.69
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.88
H (inch) - 0.31
I (inch) - 3
J (inch) - 2.5
K (inch) - 0.98
L (inch) - 1.71
M (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FB - Flanged bracket
DL - Wide inner ring, normal duty, concentric clamp collar

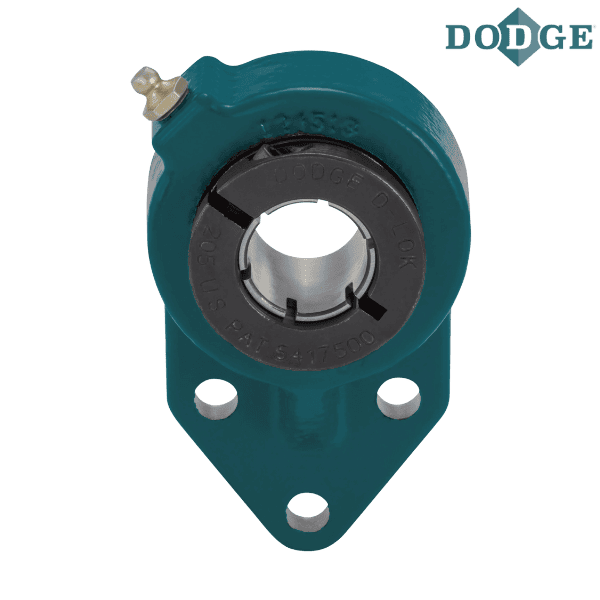

** Images are for representation purposes only
