128795 DODGE - F4B-DL-211

Brand - DODGE
Item Number - 128795 DODGE - F4B-DL-211
Category - D-LOK® Ball Bearings (DL Normal Duty 4-Bolt Flange Bearings)
Series - 214
Shaft Size (inch) - 2.6875
Description - F4B-DL-211
Part Number (No Lube/Sealed for Life) - 062407
Description (No Lube/Sealed for Life) - F4B-DL-211-NL
Weight (lbs) - 14.6

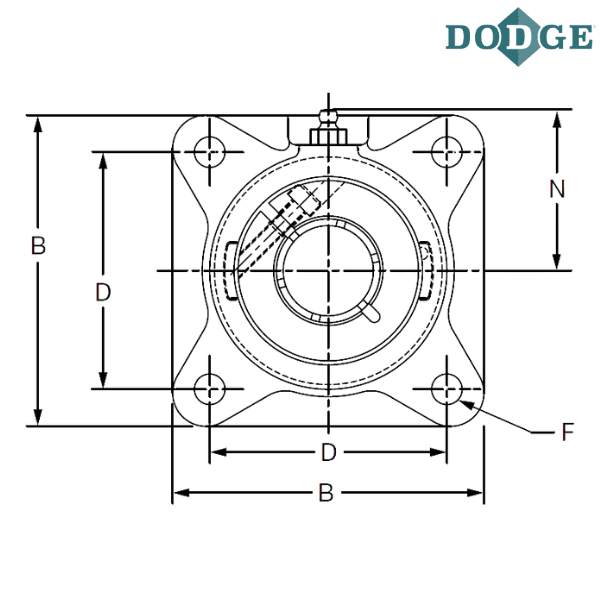

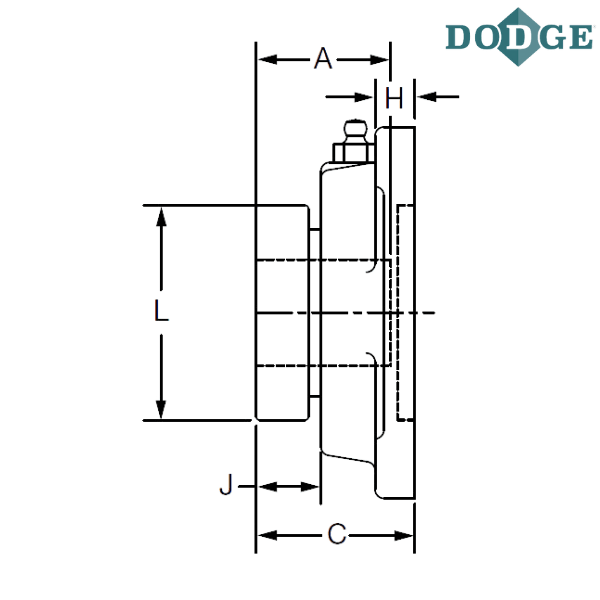

Length Through Bore (A) inch - 2.6
Overall Length (B) inch - 7.38
Thickness (C) inch - 2.85
Bolt Center to Center Length (D) inch - 5.88
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.69
J (inch) - 0.66
L (inch) - 4.38
N (inch) - 3.69
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar

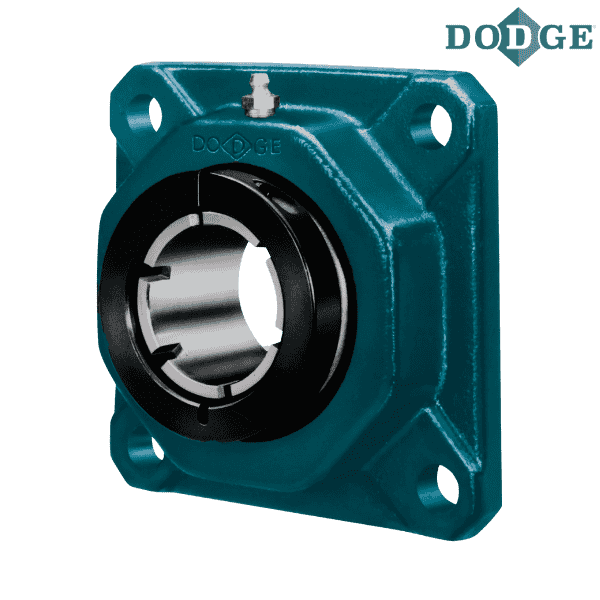

** Images are for representation purposes only
