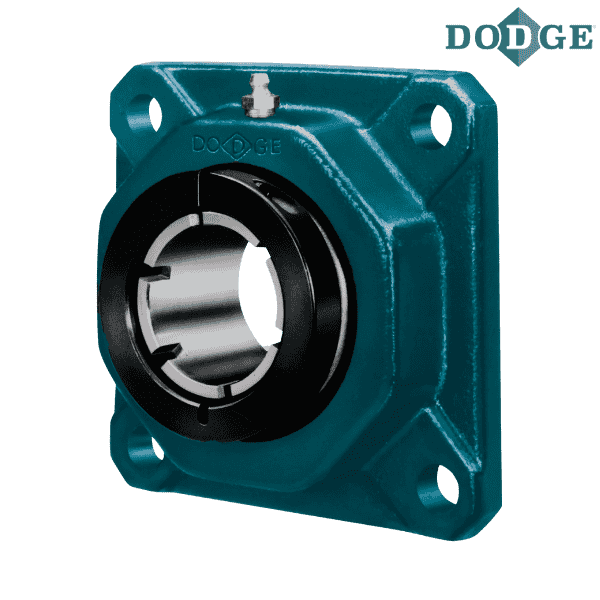

128785 DODGE - F4B-DL-108

Brand - DODGE
Item Number - 128785 DODGE - F4B-DL-108
Category - D-LOK® Ball Bearings (DL Normal Duty 4-Bolt Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - F4B-DL-108
Part Number (No Lube/Sealed for Life) - 074781
Description (No Lube/Sealed for Life) - F4B-DL-108-NL
Weight (lbs) - 5.8

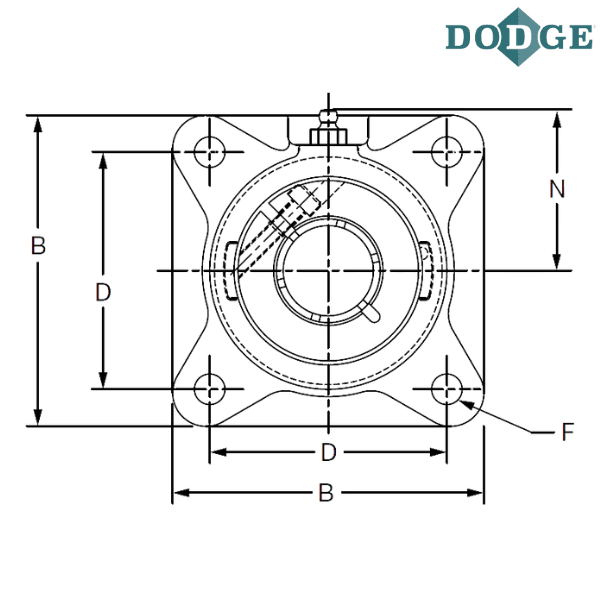

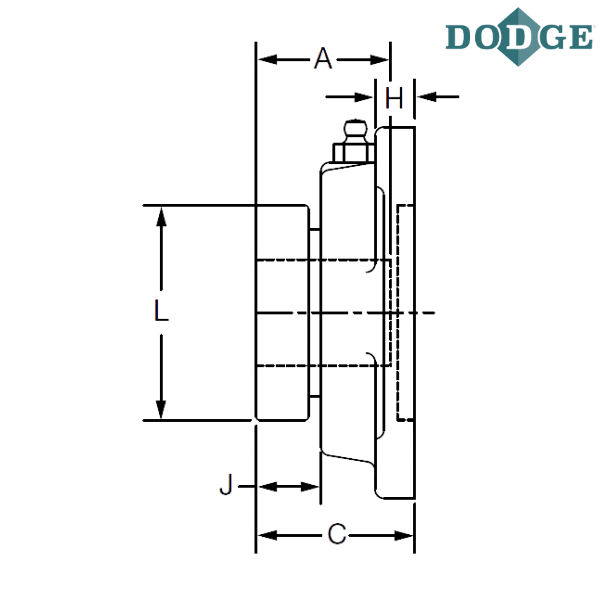

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 5.13
Thickness (C) inch - 2.05
Bolt Center to Center Length (D) inch - 4
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.7
L (inch) - 2.74
N (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
