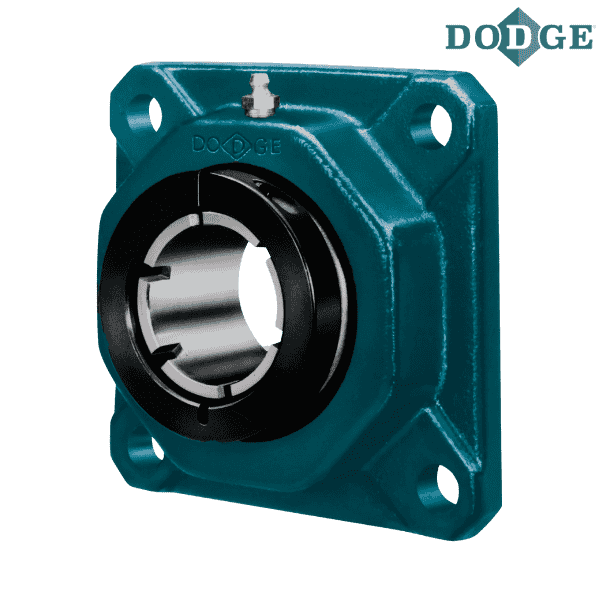

128784 DODGE - F4B-DL-107

Brand - DODGE
Item Number - 128784 DODGE - F4B-DL-107
Category - D-LOK® Ball Bearings (DL Normal Duty 4-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.4375
Description - F4B-DL-107
Part Number (No Lube/Sealed for Life) - 059705
Description (No Lube/Sealed for Life) - F4B-DL-107-NL
Weight (lbs) - 4.3

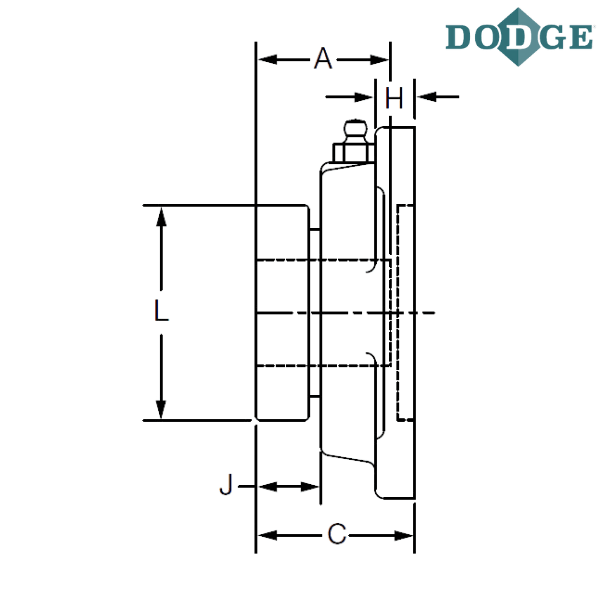

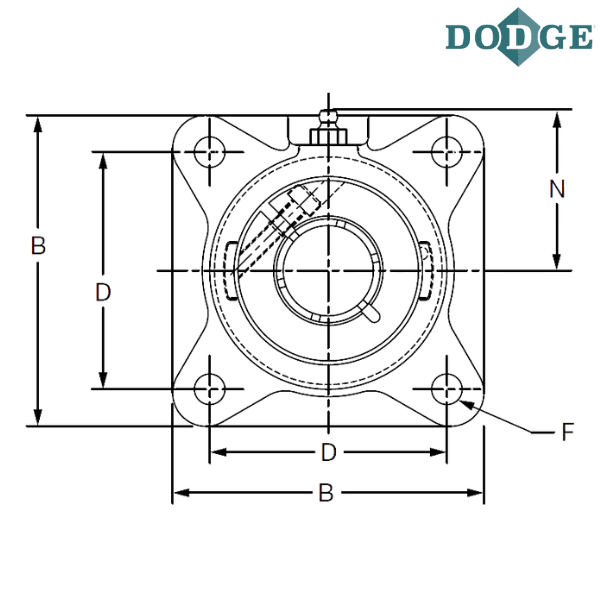

Length Through Bore (A) inch - 1.75
Overall Length (B) inch - 4.75
Thickness (C) inch - 1.79
Bolt Center to Center Length (D) inch - 3.63
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.57
L (inch) - 2.69
N (inch) - 2.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
