128780 DODGE - F4B-DL-103

Brand - DODGE
Item Number - 128780 DODGE - F4B-DL-103
Category - D-LOK® Ball Bearings (DL Normal Duty 4-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.1875
Description - F4B-DL-103
Part Number (No Lube/Sealed for Life) - 062408
Description (No Lube/Sealed for Life) - F4B-DL-103-NL
Weight (lbs) - 3.7

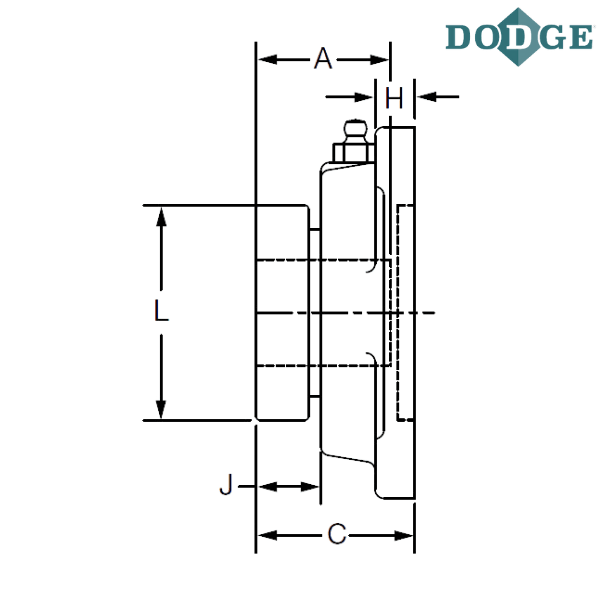

Length Through Bore (A) inch - 1.56

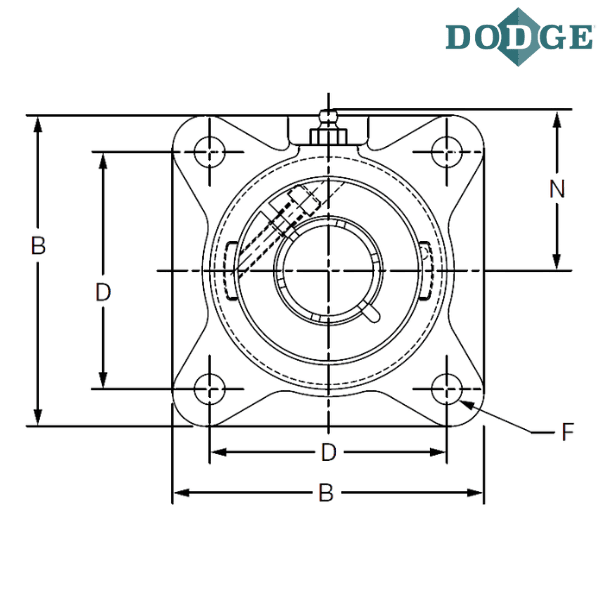

Overall Length (B) inch - 4.25
Thickness (C) inch - 1.6
Bolt Center to Center Length (D) inch - 3.25
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.5
J (inch) - 0.53
L (inch) - 2.22
N (inch) - 2.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
