128776 DODGE - F4B-DL-014

Brand - DODGE
Item Number - 128776 DODGE - F4B-DL-014
Category - D-LOK® Ball Bearings (DL Normal Duty 4-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 0.875
Description - F4B-DL-014
Description (No Lube/Sealed for Life) - F4B-DL-014-NL
Weight (lbs) - 2.2

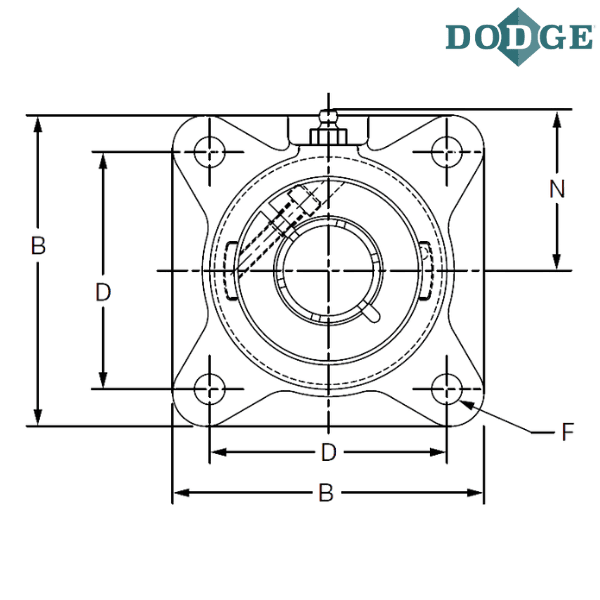

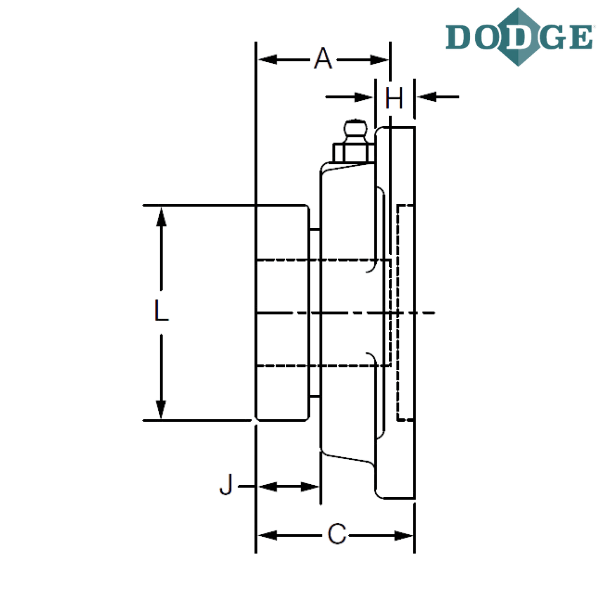

Length Through Bore (A) inch - 1.44
Overall Length (B) inch - 3.75
Thickness (C) inch - 1.47
Bolt Center to Center Length (D) inch - 2.75
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.5
J (inch) - 0.51
L (inch) - 1.99
N (inch) - 2.06
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar

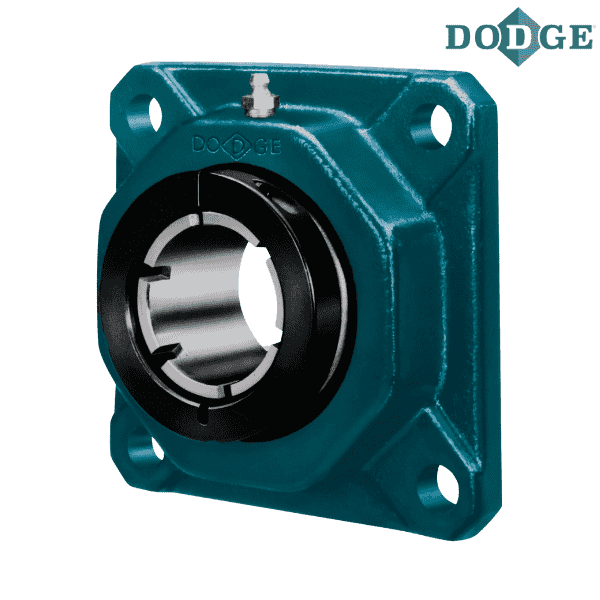

** Images are for representation purposes only
