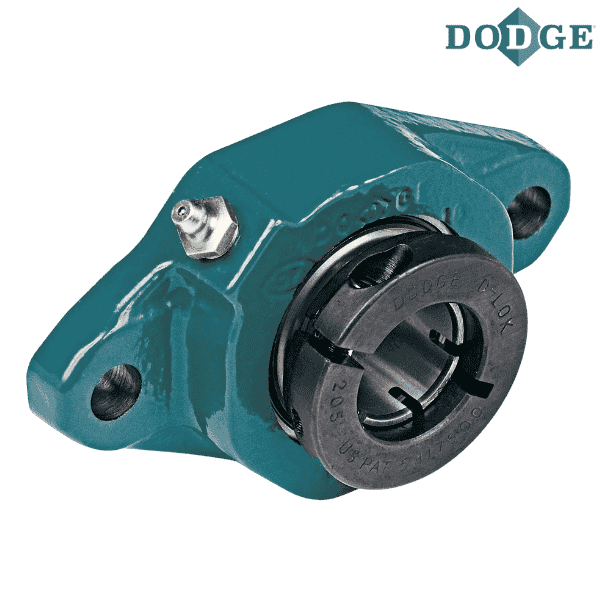

128771 DODGE - F2B-DL-115

Brand - DODGE
Item Number - 128771 DODGE - F2B-DL-115
Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - F2B-DL-115
Part Number (No Lube/Sealed for Life) - 056967
Description (No Lube/Sealed for Life) - F2B-DL-115-NL
Weight (lbs) - 6

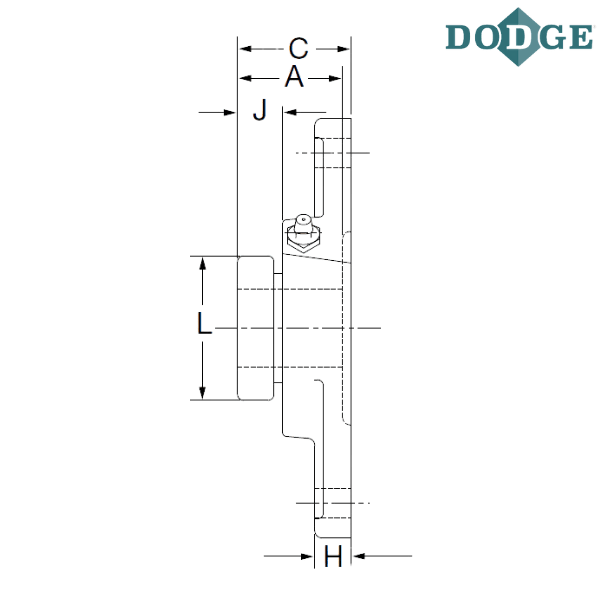

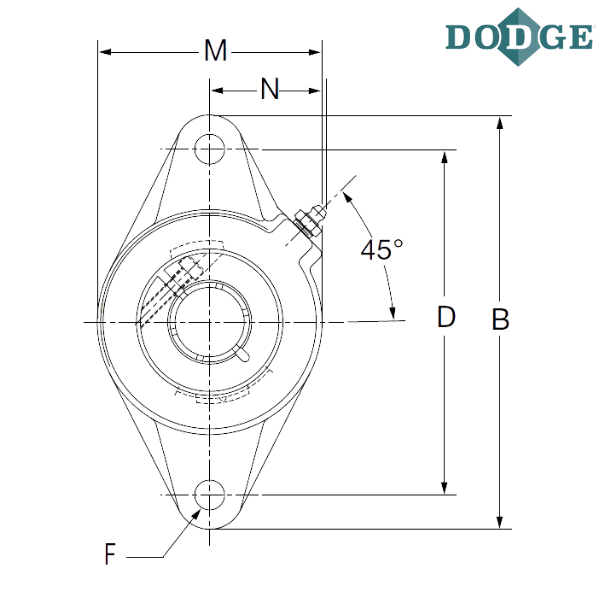

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 7.44
Thickness (C) inch - 2.1
Bolt Center to Center Length (D) inch - 6.19
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.63
L (inch) - 3.24
Overall Width (M) inch - 4.56
N (inch) - 2.03
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
