128769 DODGE - F2B-DL-111

Brand - DODGE
Item Number - 128769 DODGE - F2B-DL-111
Category - D-LOK® Ball Bearings (DL Normal Duty 2-Bolt Flange Bearings)
Series - 209
Shaft Size (inch) - 1.6875
Description - F2B-DL-111
Part Number (No Lube/Sealed for Life) - 056962
Description (No Lube/Sealed for Life) - F2B-DL-111-NL
Weight (lbs) - 5.2

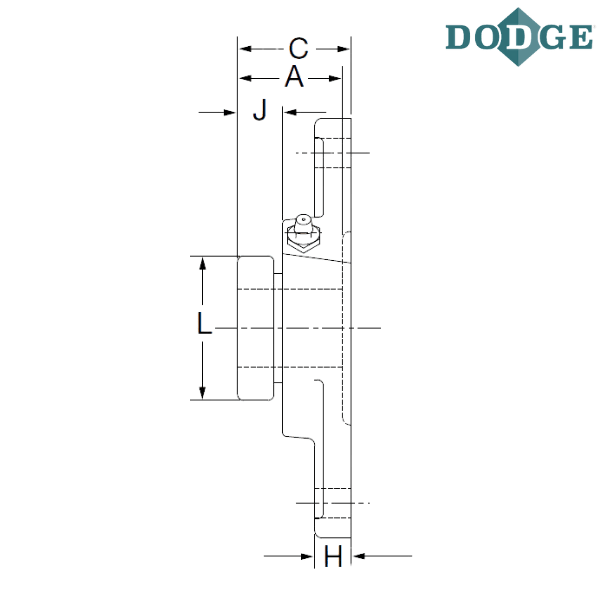

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 7.06
Thickness (C) inch - 2.06

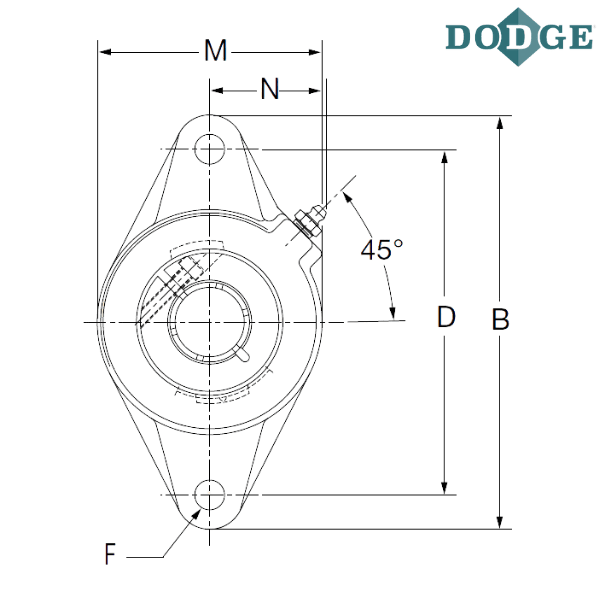

Bolt Center to Center Length (D) inch - 5.84
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.66
L (inch) - 2.99
Overall Width (M) inch - 4.38
N (inch) - 1.91
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar

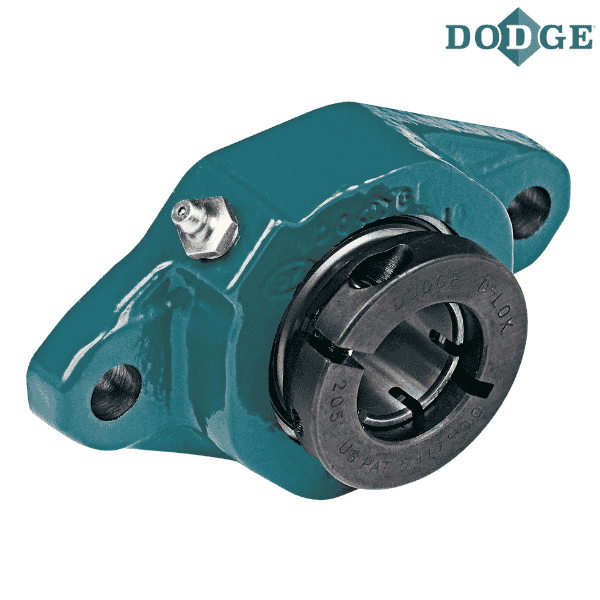

** Images are for representation purposes only
