Description
Brand - DODGE
Item Number - 128764 DODGE - F2B-DL-104
Category - D-LOK® Ball Bearings (DLM Medium Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.25
Description - F2B-DL-104
Weight (lbs) - 3.5

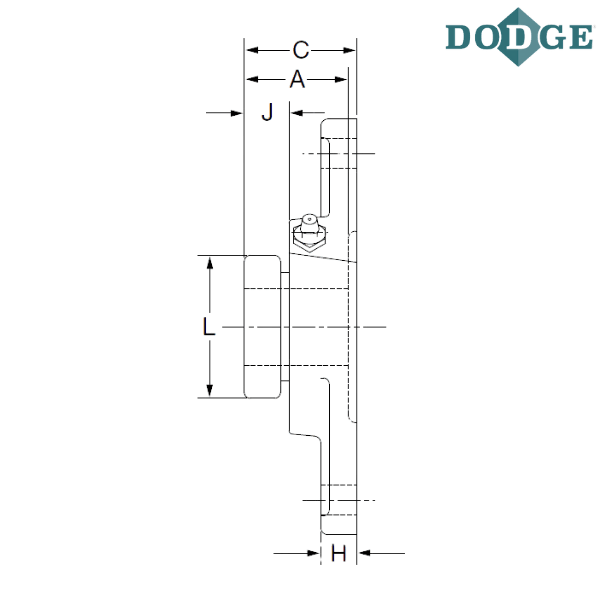

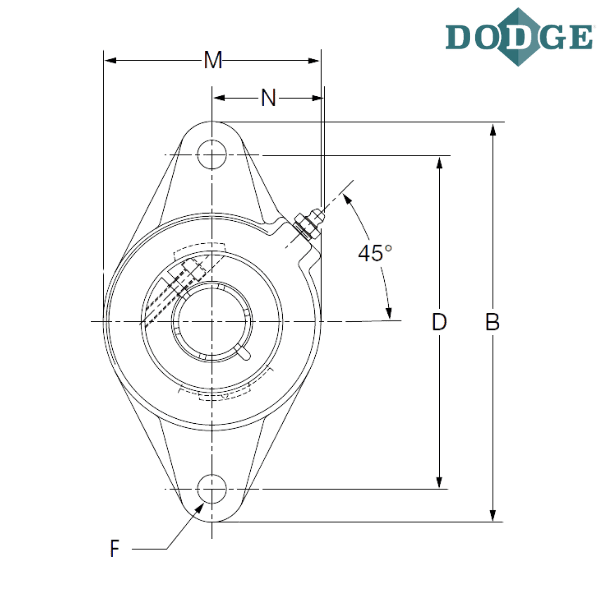

Length Through Bore (A) mm - 51.1
Overall Length (B) mm - 171.5
Thickness (C) mm - 52.1
Bolt Center to Center Length (D) mm - 143.8
F-Bolt Diameter - M12
H (mm) - 14.2
J (mm) - 17.8
L (mm) - 69.6
Overall Width (M) mm - 104.9
N (mm) - 46.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar

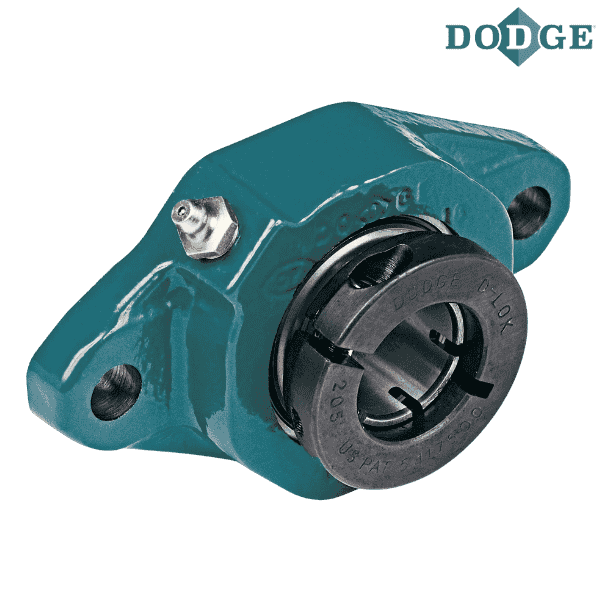

** Images are for representation purposes only
