Description
Brand - DODGE
Item Number - 128755 DODGE - TB-DL-115
Category - D-LOK® Ball Bearings (DL Normal Duty Tapped Base Pillow Blocks)
Series - 210
Shaft Size (inch) - 1.9375
Description - TB-DL-115
Weight (lbs) - 8.6

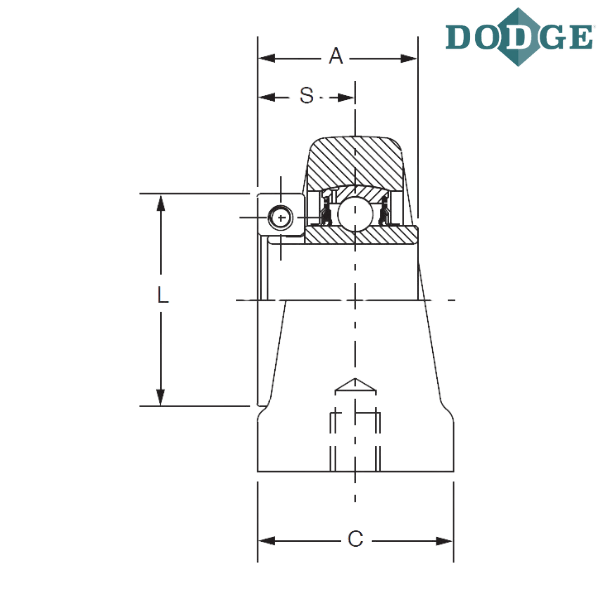

Length Through Bore (A) inch - 2.01

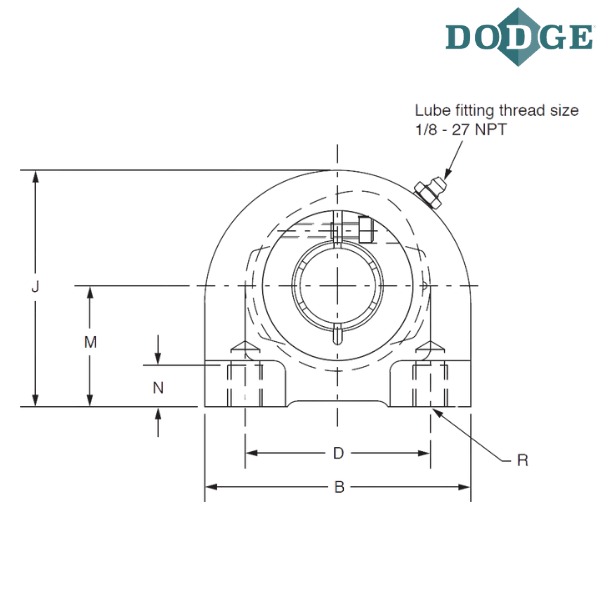

Overall Length (B) inch - 5.5
Width (C) inch - 2
Bolt Center to Center Length (D) inch - 4
Overall Height (J) inch - 4.63
L (inch) - 3.24
Base to Center Height (M) inch - 2.25
Minimum Tap Depth (N) inch - 0.88
Bolt Hole UNC-Thread (R) inch - 0.625-11
S (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
DL - Wide inner ring, normal duty, concentric clamp collar

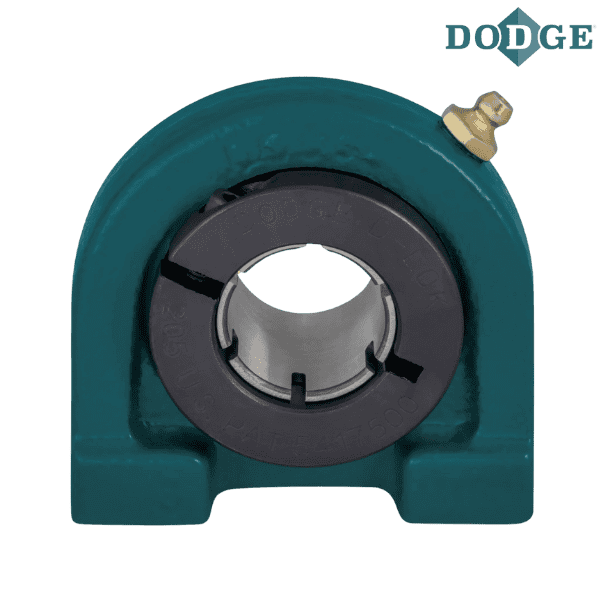

** Images are for representation purposes only
