128754 DODGE - TB-DL-112

Brand - DODGE
Item Number - 128754 DODGE - TB-DL-112
Category - D-LOK® Ball Bearings (DL Normal Duty Tapped Base Pillow Blocks)
Series - 209
Shaft Size (inch) - 1.75
Description - TB-DL-112
Weight (lbs) - 6.6

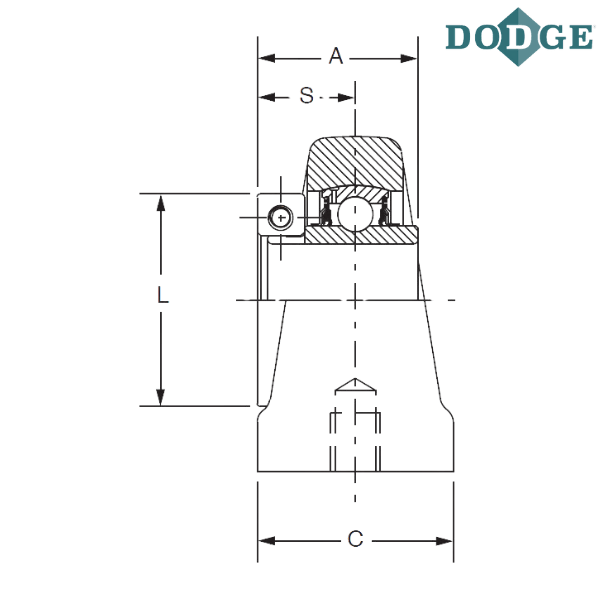

Length Through Bore (A) inch - 2.01

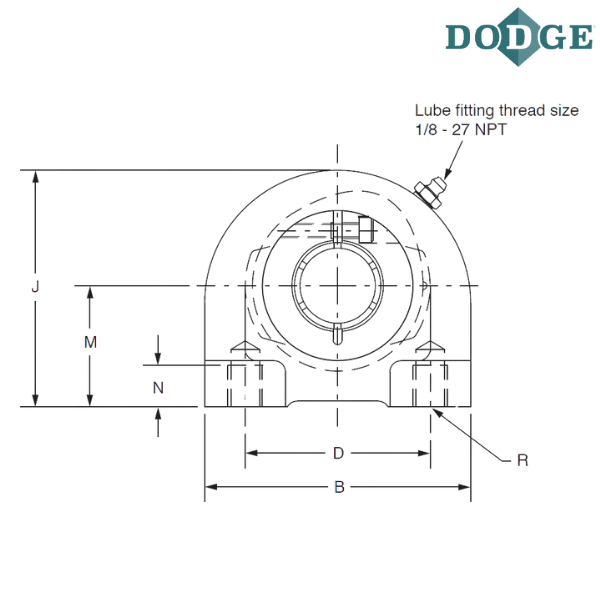

Overall Length (B) inch - 5
Width (C) inch - 2
Bolt Center to Center Length (D) inch - 3.75
Overall Height (J) inch - 4.25
L (inch) - 2.99
Base to Center Height (M) inch - 2.13
Minimum Tap Depth (N) inch - 0.75
Bolt Hole UNC-Thread (R) inch - 0.5-13
S (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
DL - Wide inner ring, normal duty, concentric clamp collar

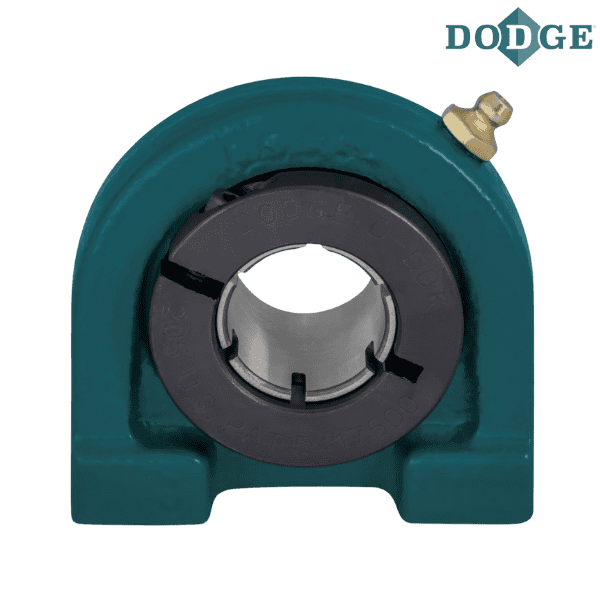

** Images are for representation purposes only
