Description
Brand - DODGE
Item Number - 128747 DODGE - TB-DL-104S
Category - D-LOK® Ball Bearings (DL Normal Duty Tapped Base Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.25
Description - TB-DL-104S
Weight (lbs) - 3.5

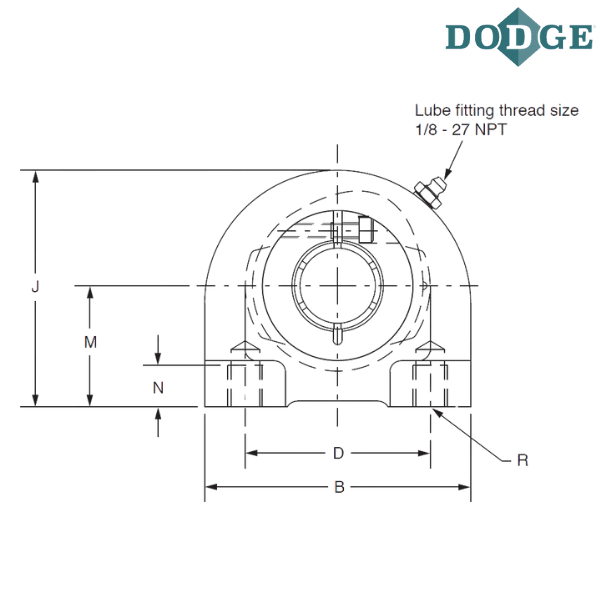

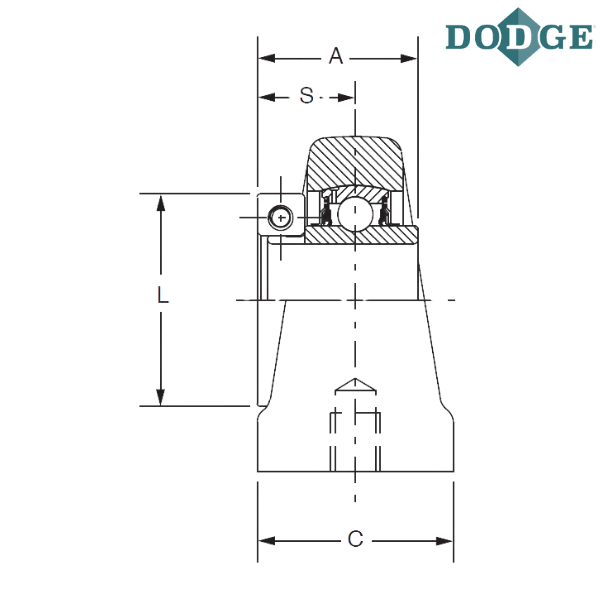

Length Through Bore (A) inch - 1.56
Overall Length (B) inch - 4
Width (C) inch - 1.5
Bolt Center to Center Length (D) inch - 3
Overall Height (J) inch - 3.38
L (inch) - 2.22
Base to Center Height (M) inch - 1.69
Minimum Tap Depth (N) inch - 0.63
Bolt Hole UNC-Thread (R) inch - 0.4375-14
S (inch) - 0.98
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
DL - Wide inner ring, normal duty, concentric clamp collar
S - Next smaller ring size

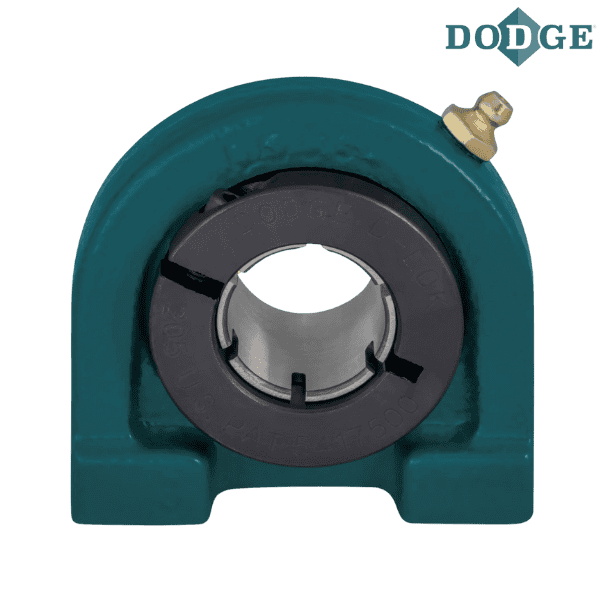

** Images are for representation purposes only
