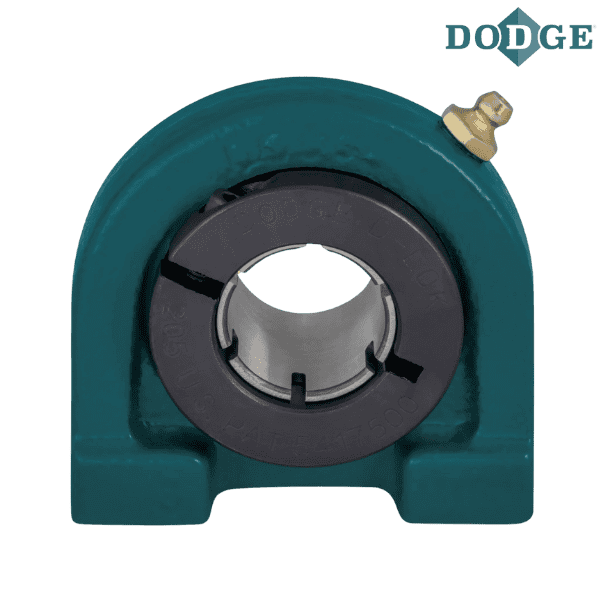

128742 DODGE - TB-DL-012

Brand - DODGE
Item Number - 128742 DODGE - TB-DL-012
Category - D-LOK® Ball Bearings (DL Normal Duty Tapped Base Pillow Blocks)
Series - 204
Shaft Size (inch) - 0.75
Description - TB-DL-012
Weight (lbs) - 1.9

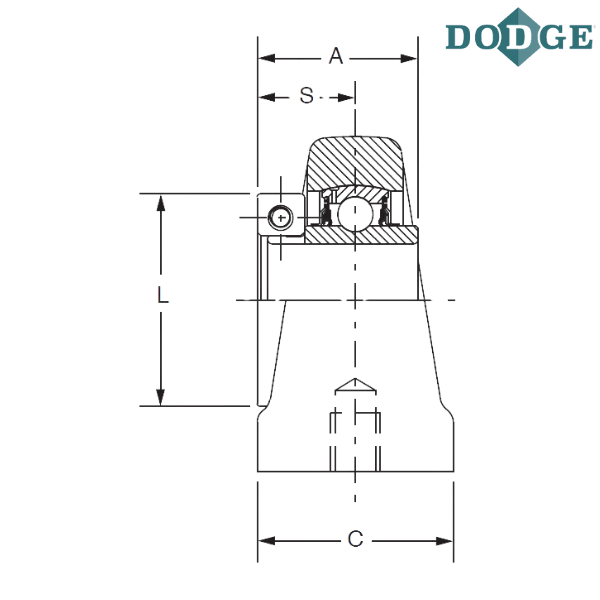

Length Through Bore (A) inch - 1.28

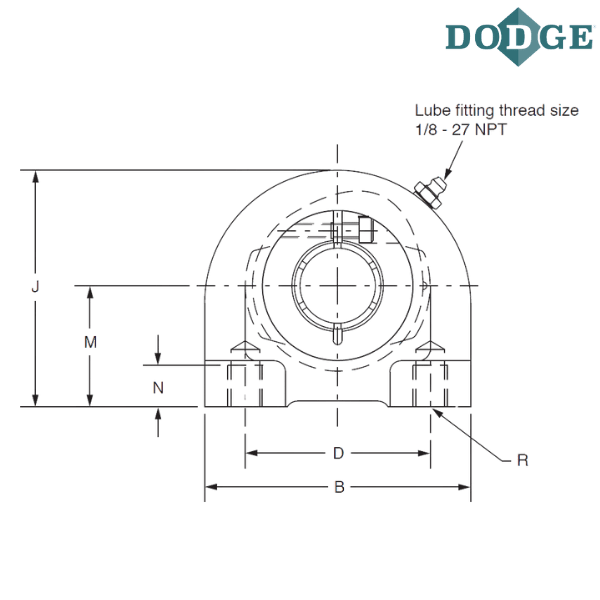

Overall Length (B) inch - 2.88
Width (C) inch - 1.5
Bolt Center to Center Length (D) inch - 2
Overall Height (J) inch - 2.56
L (inch) - 1.71
Base to Center Height (M) inch - 1.31
Minimum Tap Depth (N) inch - 0.5
Bolt Hole UNC-Thread (R) inch - 0.375-16
S (inch) - 0.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
