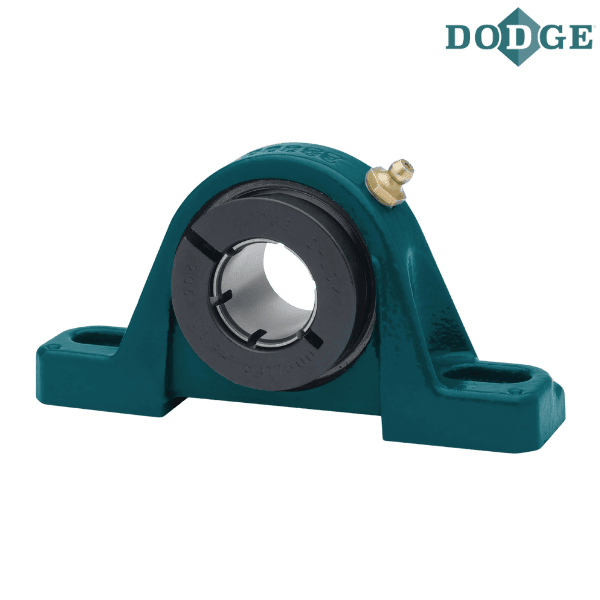

128741 DODGE - P2B-DLB-207

Brand - DODGE
Item Number - 128741 DODGE - P2B-DLB-207
Category - D-LOK® Ball Bearings (DLB Normal Duty Pillow Blocks)
Series - 212
Shaft Size (inch) - 2.4375
Description - P2B-DLB-207
Weight (lbs) - 14.8

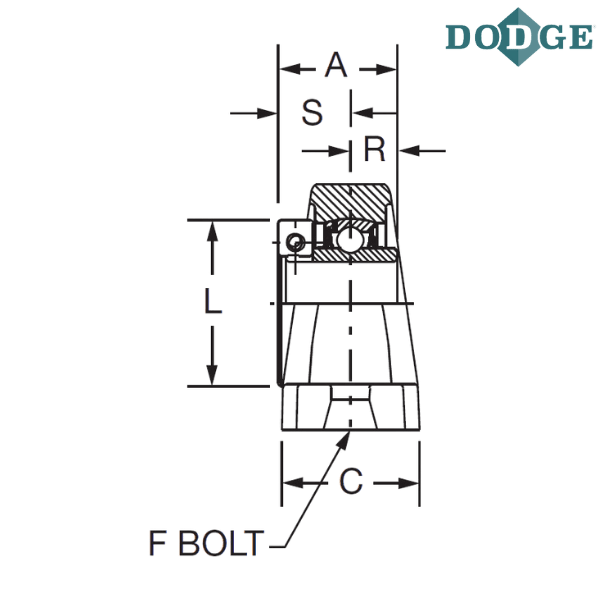

Length Through Bore (A) inch - 2.38

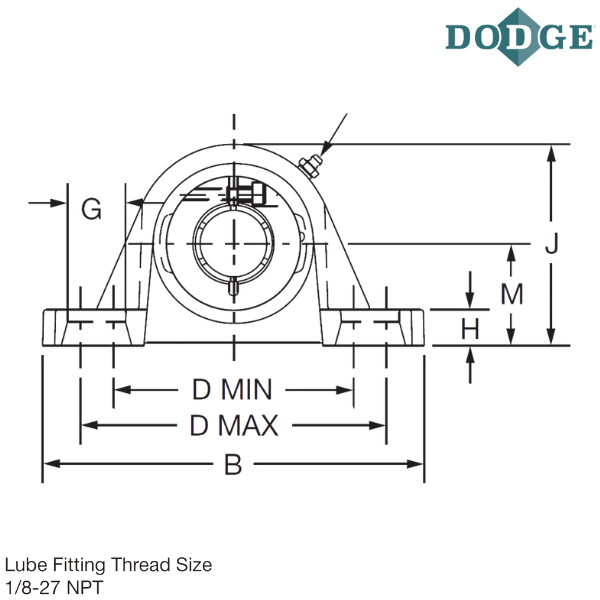

Overall Length (B) inch - 9.5
Width (C) inch - 2.37
Bolt to Bolt Minimum Distance (D min) inch - 6.88
Bolt to Bolt Maximum Distance (D max) inch - 7.94
F-Bolt Diameter (inch) - 45509
G (inch) - 1.21
H (inch) - 0.81
Overall Height (J) inch - 5.34
L (inch) - 4.11
Base to Center Height (M) inch - 2.69
R (inch) - 0.9
S (inch) - 1.48

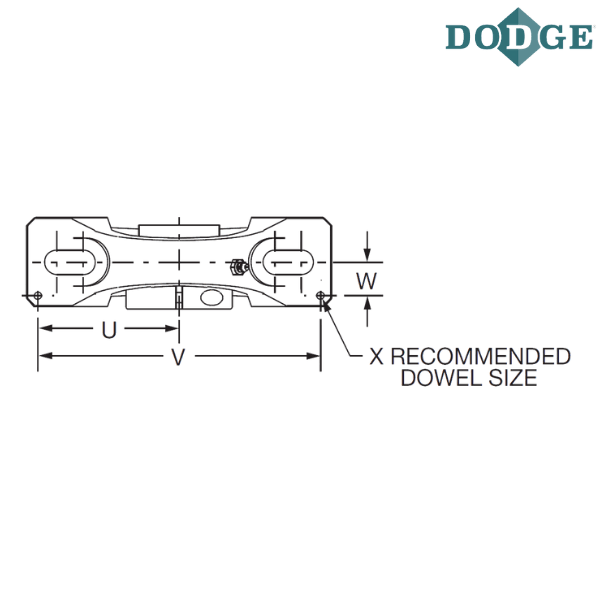

U (inch) - 4.25
V (inch) - 8.5
W (inch) - 0.88
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
B - Low backing height pillow block
