128726 DODGE - P2B-DLB-103

Brand - DODGE
Item Number - 128726 DODGE - P2B-DLB-103
Category - D-LOK® Ball Bearings (DLB Normal Duty Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.1875
Description - P2B-DLB-103
Weight (lbs) - 3.7

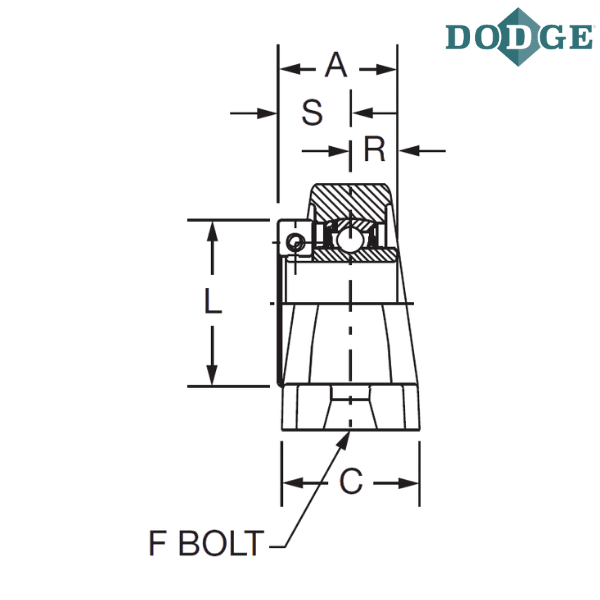

Length Through Bore (A) inch - 1.56

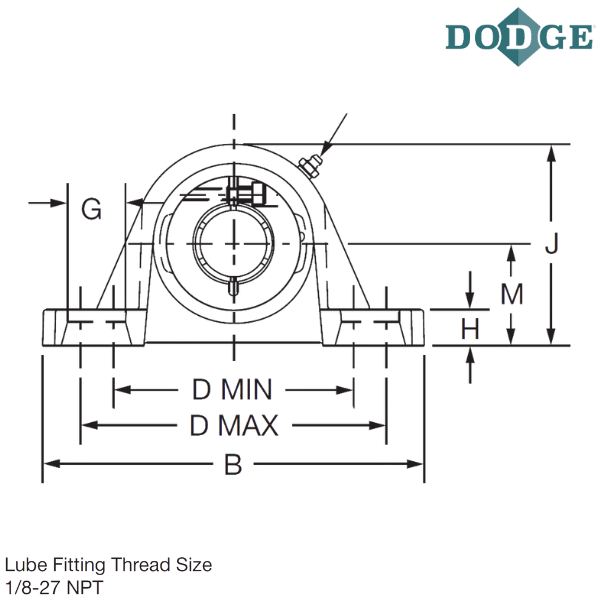

Overall Length (B) inch - 6.25
Width (C) inch - 1.75
Bolt to Bolt Minimum Distance (D min) inch - 4.25
Bolt to Bolt Maximum Distance (D max) inch - 5
F-Bolt Diameter (inch) - 45323
G (inch) - 0.94
H (inch) - 0.62
Overall Height (J) inch - 3.19
L (inch) - 2.22
Base to Center Height (M) inch - 1.56
R (inch) - 0.58
S (inch) - 0.98

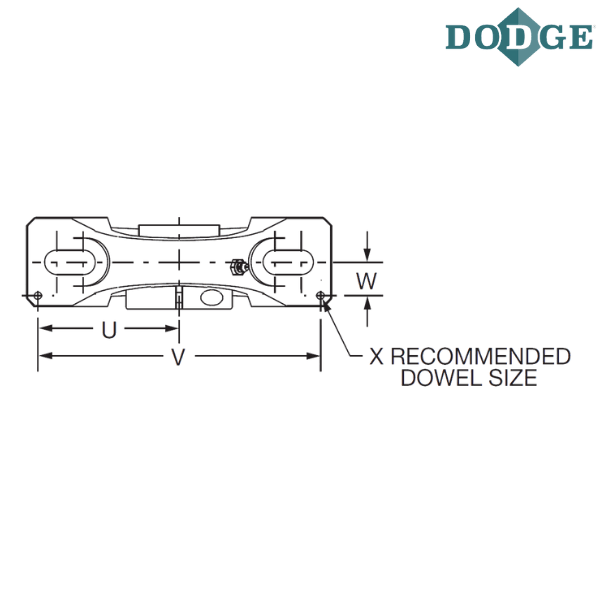

U (inch) - 2.88
V (inch) - 5.76
W (inch) - 0.56
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

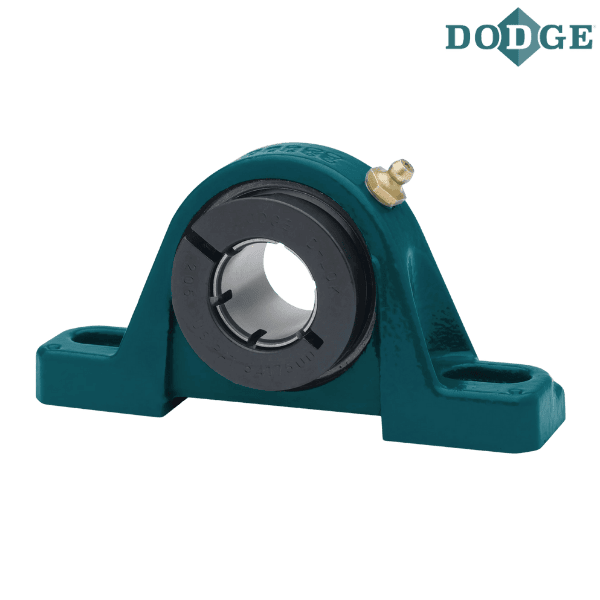

P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
B - Low backing height pillow block

** Images are for representation purposes only
