128721 DODGE - P2B-DLB-012

Brand - DODGE
Item Number - 128721 DODGE - P2B-DLB-012
Category - D-LOK® Ball Bearings (DLB Normal Duty Pillow Blocks)
Series - 204
Shaft Size (inch) - 0.75
Description - P2B-DLB-012
Weight (lbs) - 2.1

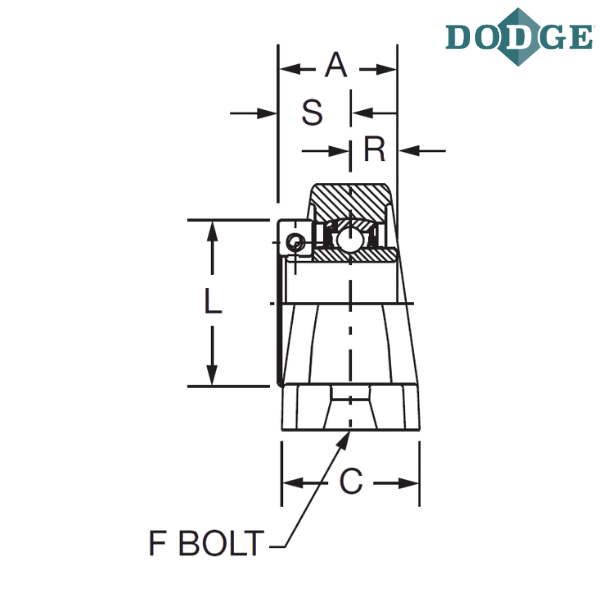

Length Through Bore (A) inch - 1.28

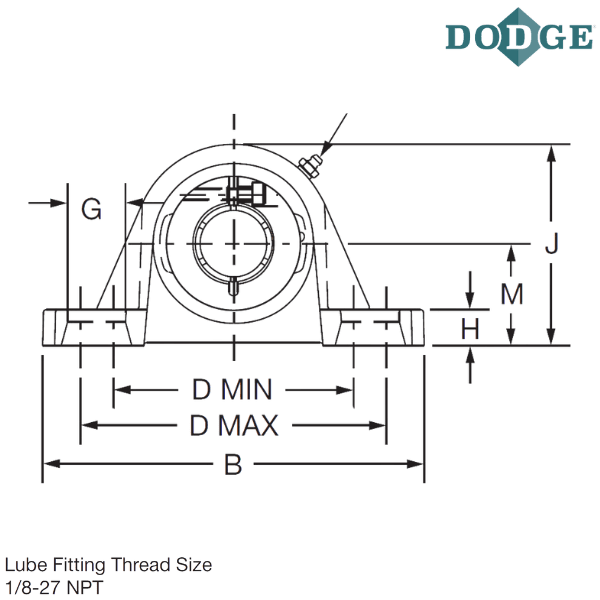

Overall Length (B) inch - 5.25
Width (C) inch - 1.34
Bolt to Bolt Minimum Distance (D min) inch - 3.38
Bolt to Bolt Maximum Distance (D max) inch - 4.19
F-Bolt Diameter (inch) - 45507
G (inch) - 0.85
H (inch) - 0.47
Overall Height (J) inch - 2.49
L (inch) - 1.71
Base to Center Height (M) inch - 1.25
R (inch) - 0.5
S (inch) - 0.78

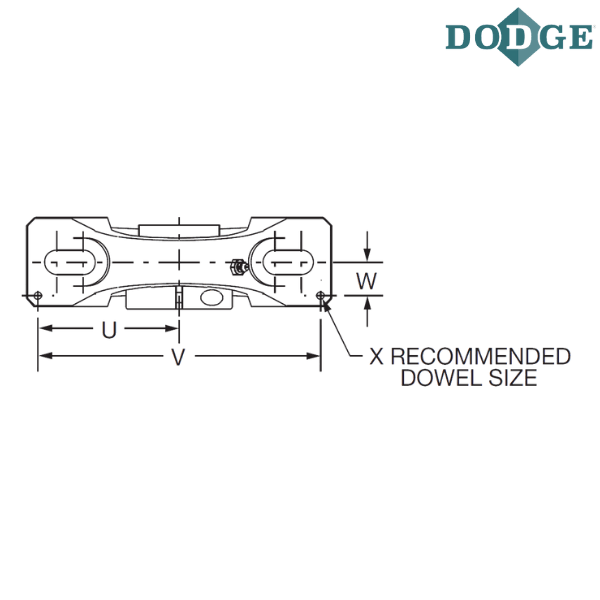

U (inch) - 2.25
V (inch) - 4.5
W (inch) - 0.5
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
B - Low backing height pillow block

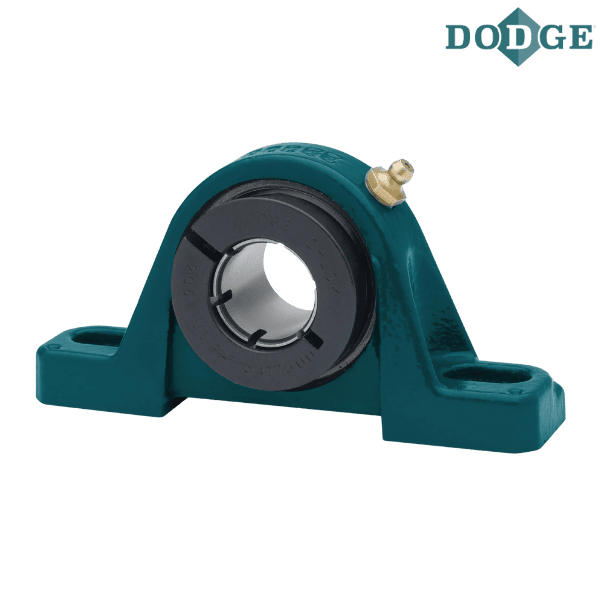

** Images are for representation purposes only
