Description
Brand - DODGE
Item Number - 128673 DODGE - INS-DLM-112
Category - D-LOK® Ball Bearings (DLM Normal Duty Bearings Inserts)
Series - 210
Shaft Size (inch) - 1.75
Description - INS-DLM-112
Weight (kg) - 3

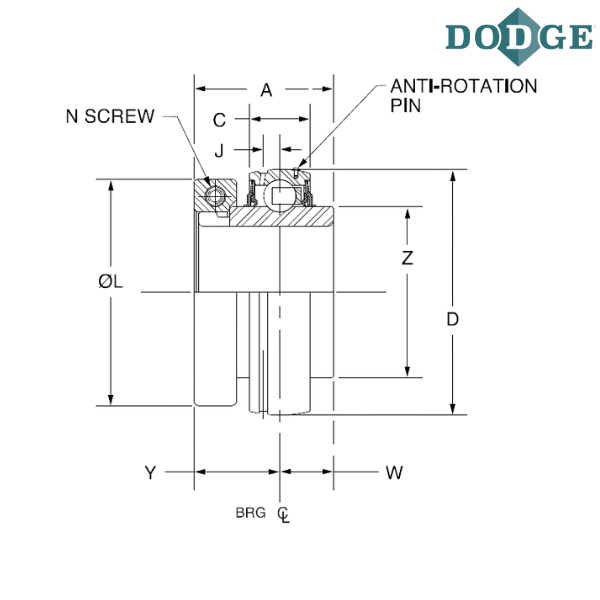

Overall Width (A) mm - 51.1
C (mm) - 22.1
Overall Length (D) mm - 90
J (mm) - 6.4
L (mm) - 82.3
Screw, UNF (N) - M6x20
W (mm) - 19.1
Y (mm) - 32
Z (mm) - 61.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
DLM - Wide inner ring, medium duty, concentric clamp collar

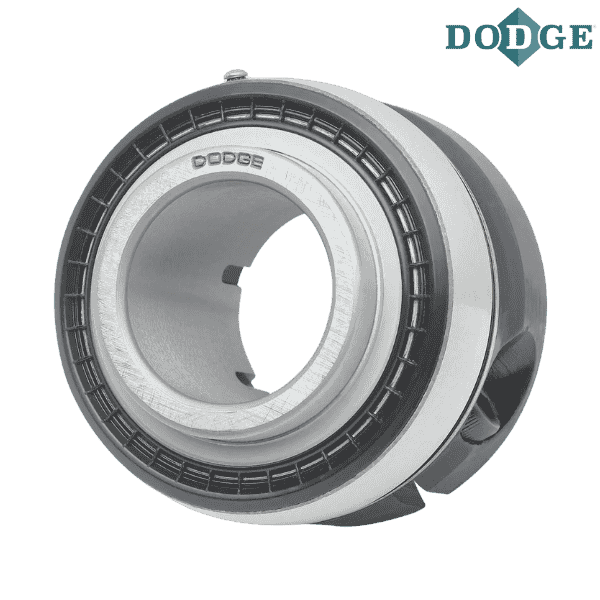

** Images are for representation purposes only
