Description
Brand - DODGE
Item Number - 128664 DODGE - INS-DLM-204
Category - D-LOK® Ball Bearings (DLM Normal Duty Bearings Inserts)
Series - 212
Shaft Size (inch) - 2.25
Description - INS-DLM-204
Weight (kg) - 4.8

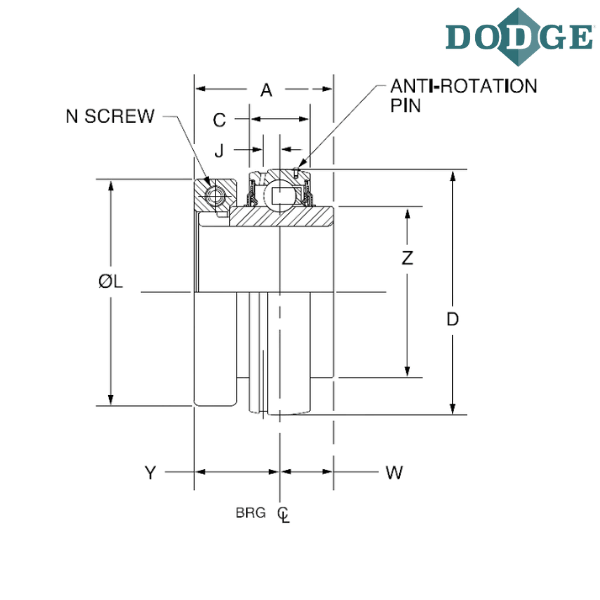

Overall Width (A) mm - 60.5
C (mm) - 25.9
Overall Length (D) mm - 110
J (mm) - 6.4
L (mm) - 104.4
Screw, UNF (N) - M8x25
W (mm) - 22.9
Y (mm) - 37.6
Z (mm) - 75.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
DLM - Wide inner ring, medium duty, concentric clamp collar

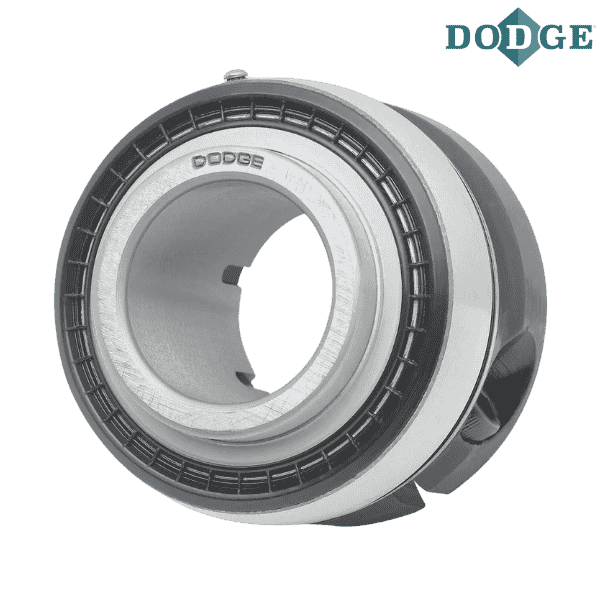

** Images are for representation purposes only
