Description
Brand - DODGE
Item Number - 128663 DODGE - INS-DL-203
Category - D-LOK® Ball Bearings (DL Normal Duty Bearing Inserts)
Series - 211
Shaft Size (inch) - 2.1875
Description - INS-DL-203
Description (Corrosion Resistant Insert) - INS-DL-203-CR
Weight (lbs) - 3.4

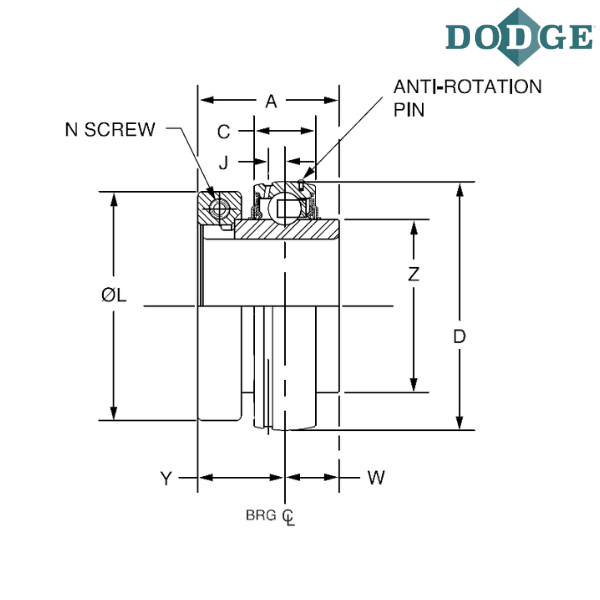

Length Through Bore (A) inch - 2.25
C (inch) - 0.87
Overall Length (D) inch - 3.5433
J (inch) - 0.25
L (inch) - 3.69
Screw, UNF (N) inch - 5/16-24
W (inch) - 0.88
Y (inch) - 1.37
Z (inch) - 2.71
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
DL - Wide inner ring, normal duty, concentric clamp collar

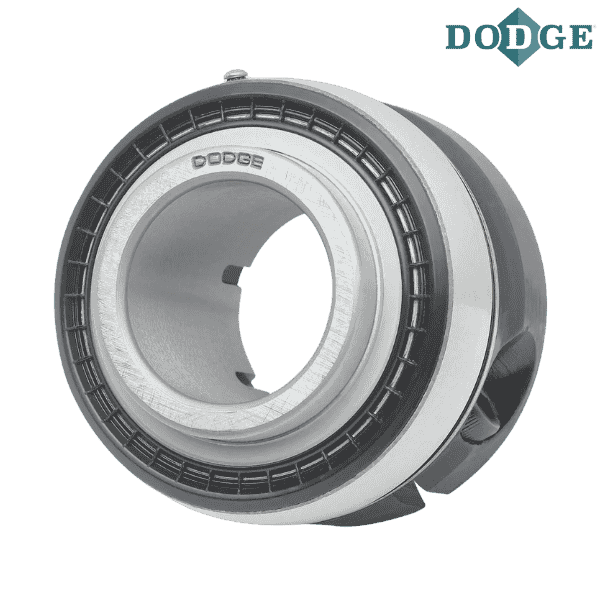

** Images are for representation purposes only
