Description
Brand - DODGE
Item Number - 128661 DODGE - INS-DLM-200
Category - D-LOK® Ball Bearings (DLM Normal Duty Bearings Inserts)
Series - 211
Shaft Size (inch) - 2
Description - INS-DLM-200
Weight (kg) - 3.3

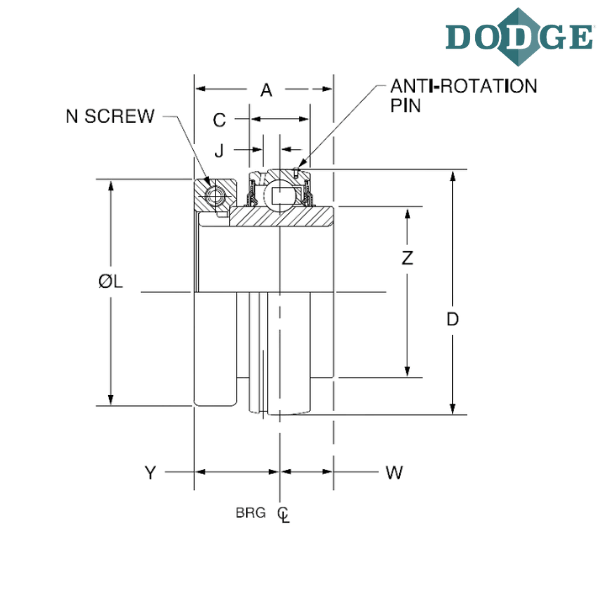

Overall Width (A) mm - 57.2
C (mm) - 23.9
Overall Length (D) mm - 100
J (mm) - 6.4
L (mm) - 93.7
Screw, UNF (N) - M8x20
W (mm) - 22.4
Y (mm) - 34.8
Z (mm) - 68.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
DLM - Wide inner ring, medium duty, concentric clamp collar

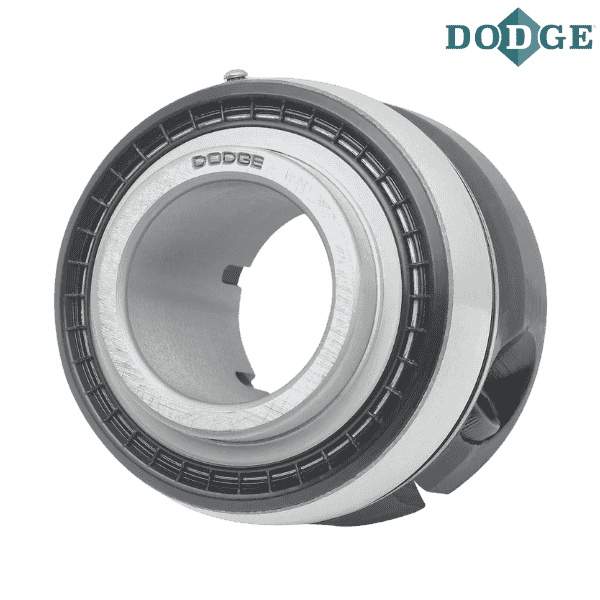

** Images are for representation purposes only
