Description
Brand - DODGE
Item Number - 128659 DODGE - INS-DL-115
Category - D-LOK® Ball Bearings (DL Normal Duty Bearing Inserts)
Series - 210
Shaft Size (inch) - 1.9375
Description - INS-DL-115
Part Number (Corrosion Resistant Insert) - 126692
Description (Corrosion Resistant Insert) - INS-DL-115-CR
Weight (lbs) - 3

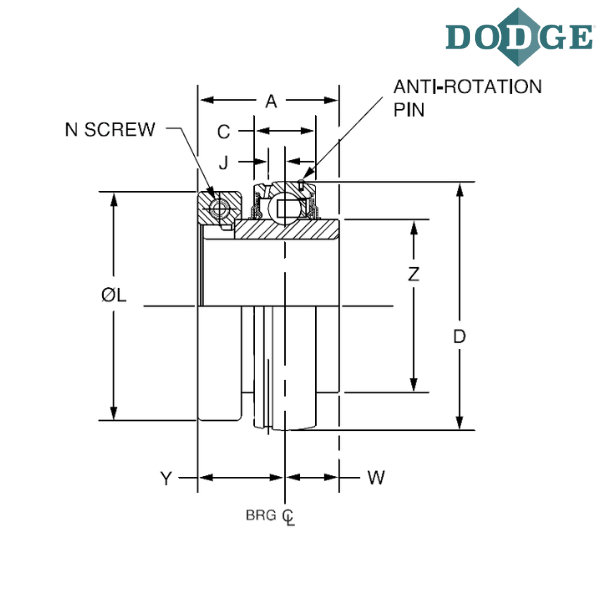

Length Through Bore (A) inch - 2.01
C (inch) - 0.87
Overall Length (D) inch - 3.5433
J (inch) - 0.25
L (inch) - 3.24
Screw, UNF (N) inch - 1/4-28
W (inch) - 0.75
Y (inch) - 1.26
Z (inch) - 2.43
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
INS - Insert
DL - Wide inner ring, normal duty, concentric clamp collar

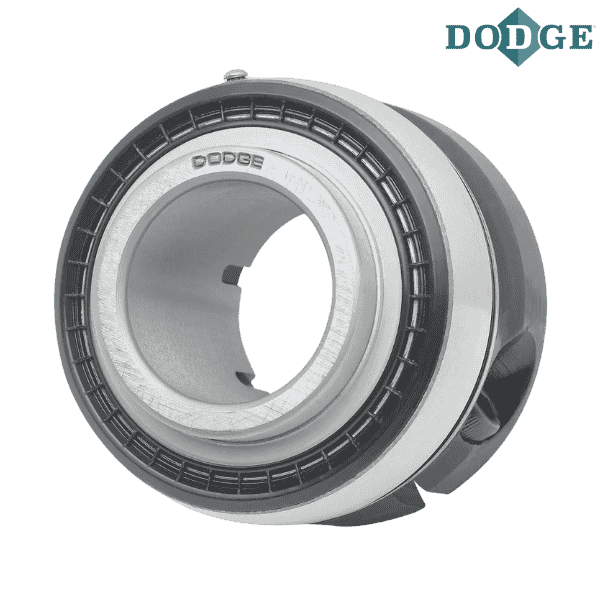

** Images are for representation purposes only
