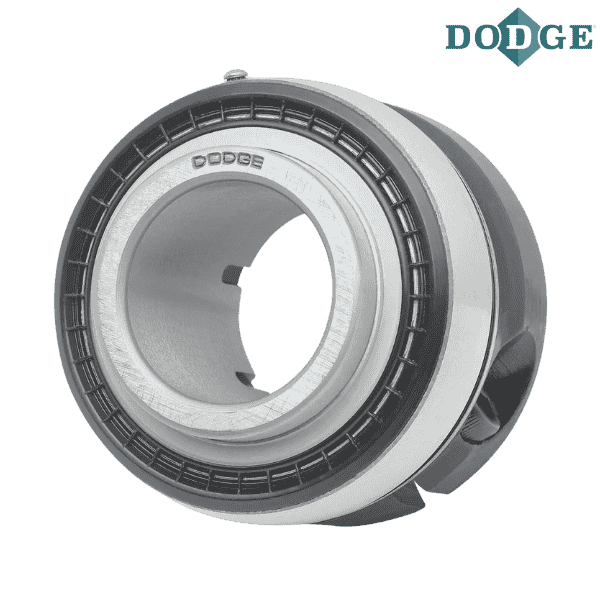

128652 DODGE - INS-DL-104


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 128652 DODGE - INS-DL-104
Category - D-LOK® Ball Bearings (DLM Normal Duty Bearings Inserts)
Series - 207
Shaft Size (inch) - 1.25
Description - INS-DL-104
Weight (kg) - 1.7

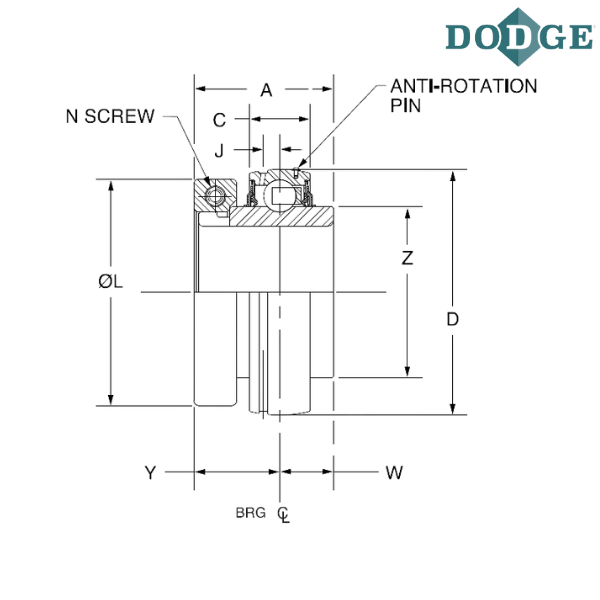

Overall Width (A) mm - 44.5
C (mm) - 19.1
Overall Length (D) mm - 72
J (mm) - 5.1
L (mm) - 68.3
Screw, UNF (N) - M6x20
W (mm) - 17
Y (mm) - 27.4
Z (mm) - 46.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
