128490 DODGE - P2B-DLMAH-307

Brand - DODGE
Item Number - 128490 DODGE - P2B-DLMAH-307
Category - D-LOK® Ball Bearings (DLMAH Medium Duty Air Handling Pillow Blocks)
Series - 218
Shaft Size (inch) - 3.4375
Description - P2B-DLMAH-307
Weight (lbs) - 34.9

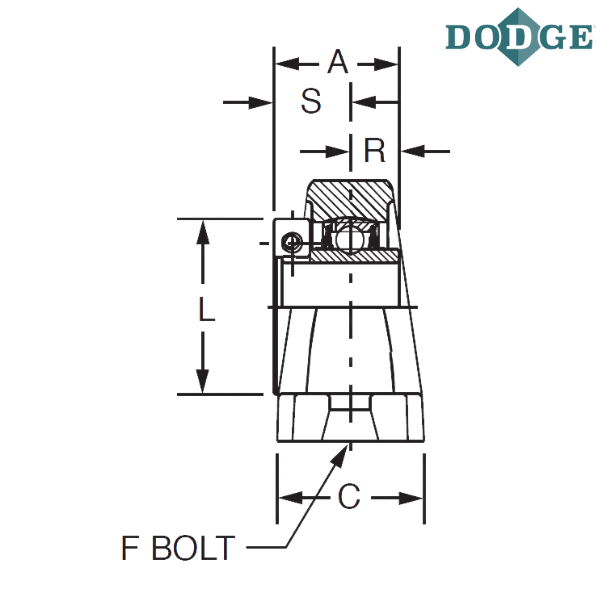

Length Through Bore (A) inch - 2.72
Length Through Bore (A) mm - 69.1

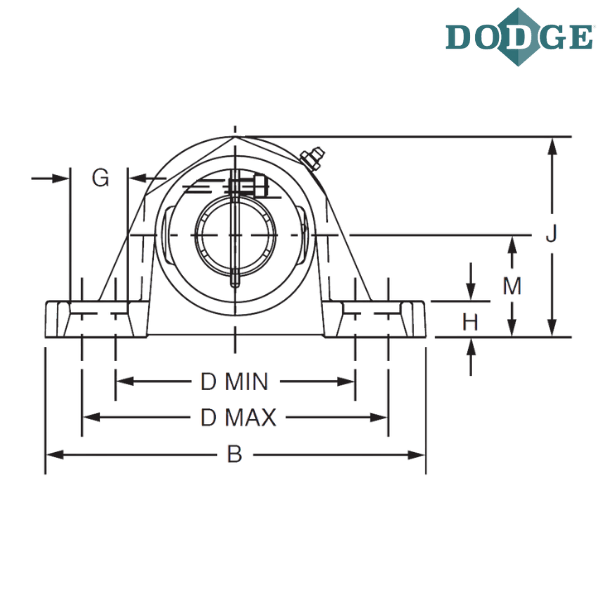

Overall Length (B) inch - 14
Overall Length (B) mm - 355.6
Width (C) inch - 3.38
Width (C) mm - 85.9
Bolt to Bolt Minimum Distance (D min) inch - 10.32
Bolt to Bolt Minimum Distance (D min) mm - 262.1
Bolt to Bolt Maximum Distance (D max) inch - 11.62
Bolt to Bolt Maximum Distance (D max) mm - 295.1
F-Bolt Diameter (inch) - 0.875
F-Bolt Diameter - M22
G (inch) - 1.59
G (mm) - 40.4
H (inch) - 1.31
H (mm) - 33.3
Overall Height (J) inch - 8
Overall Height (J) mm - 203.2
L (inch) - 5.49
L (mm) - 139.4
Base to Center Height (M) inch - 4
Base to Center Height (M) mm - 101.6
R (inch) - 0.92
R (mm) - 23.4
S (inch) - 1.8
S (mm) - 45.7

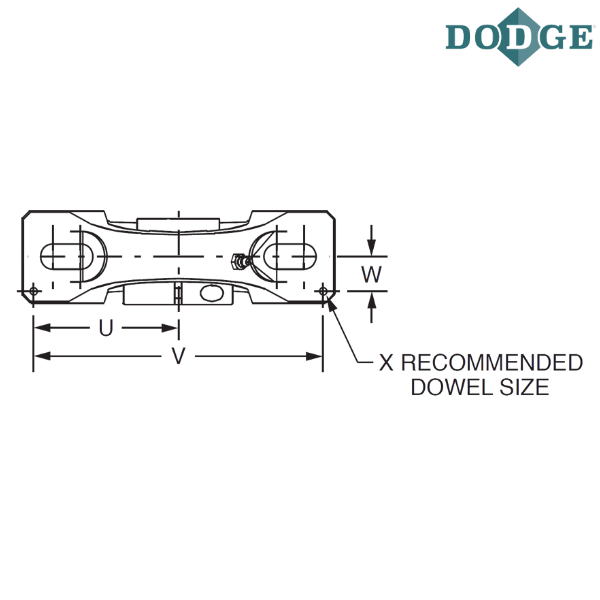

U (inch) - 6.6
U (mm) - 167.6
V (inch) - 13.2
V (mm) - 335.3
W (inch) - 1.19
W (mm) - 30.2
X (inch) - 0.12
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar
AH - Air handling

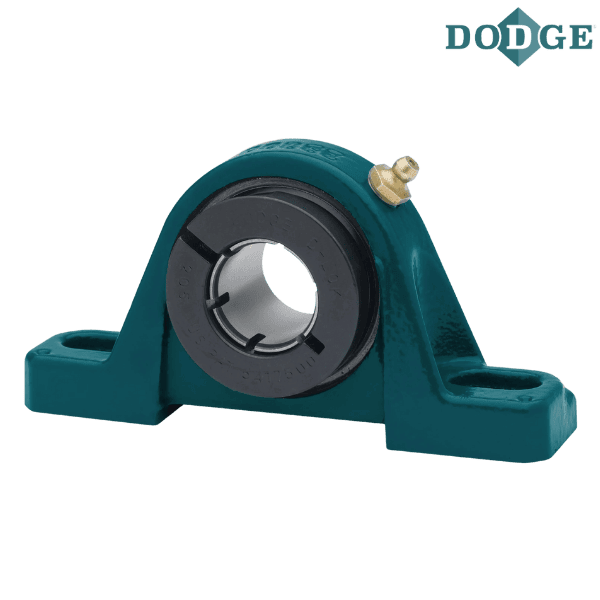

** Images are for representation purposes only
