128489 DODGE - P2B-DLMAH-215

Brand - DODGE
Item Number - 128489 DODGE - P2B-DLMAH-215
Category - D-LOK® Ball Bearings (DLMAH Medium Duty Air Handling Pillow Blocks)
Series - 216
Shaft Size (inch) - 2.9375
Description - P2B-DLMAH-215
Weight (lbs) - 25.4

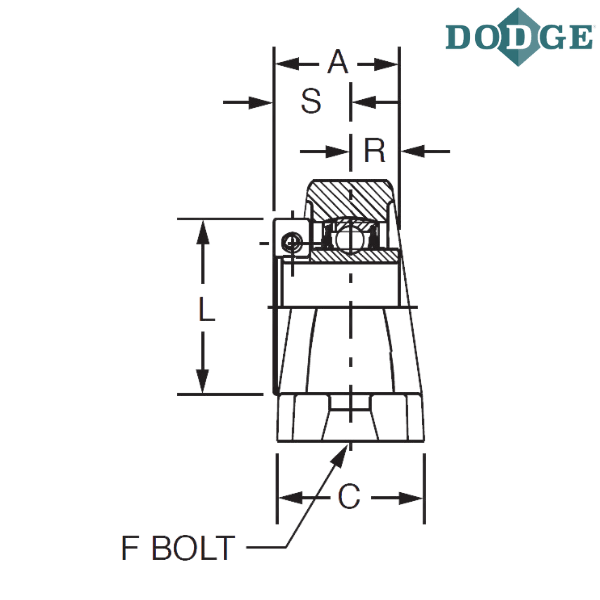

Length Through Bore (A) inch - 2.62
Length Through Bore (A) mm - 66.5

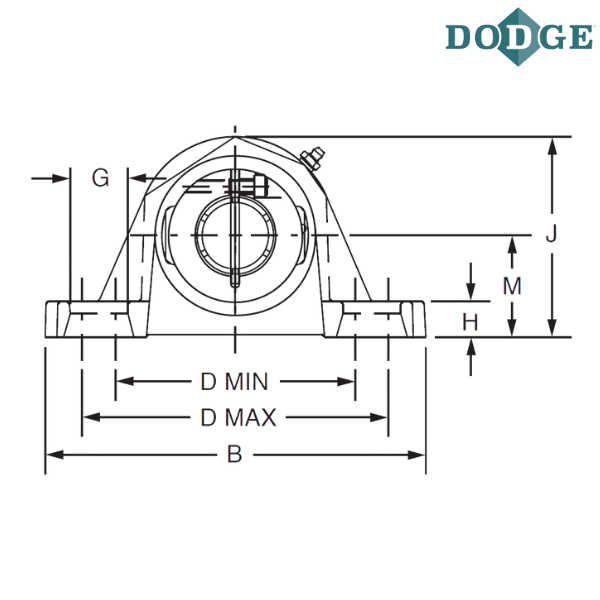

Overall Length (B) inch - 11.75
Overall Length (B) mm - 298.5
Width (C) inch - 3
Width (C) mm - 76.2
Bolt to Bolt Minimum Distance (D min) inch - 8.5
Bolt to Bolt Minimum Distance (D min) mm - 215.9
Bolt to Bolt Maximum Distance (D max) inch - 9.5
Bolt to Bolt Maximum Distance (D max) mm - 241.3
F-Bolt Diameter (inch) - 0.875
F-Bolt Diameter - M22
G (inch) - 1.44
G (mm) - 36.6
H (inch) - 1.25
H (mm) - 31.8
Overall Height (J) inch - 6.97
Overall Height (J) mm - 177
L (inch) - 4.99
L (mm) - 126.7
Base to Center Height (M) inch - 3.5
Base to Center Height (M) mm - 88.9
R (inch) - 0.88
R (mm) - 22.4
S (inch) - 1.74
S (mm) - 44.2

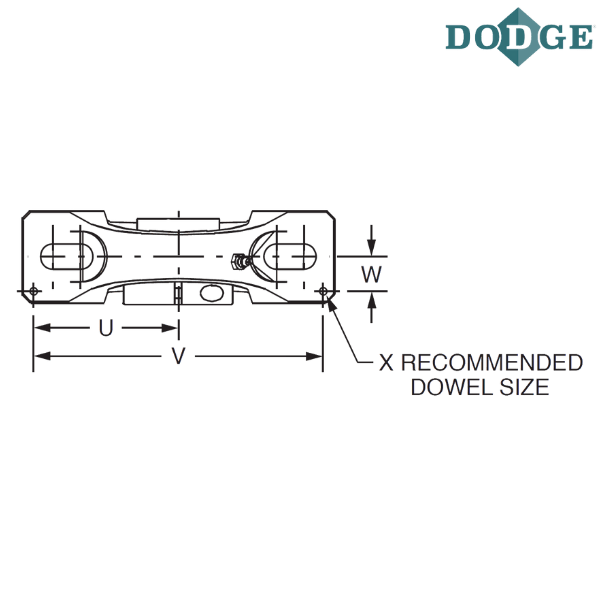

U (inch) - 5.5
U (mm) - 139.7
V (inch) - 11
V (mm) - 279.4
W (inch) - 1.09
W (mm) - 27.7
X (inch) - 0.12
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar
AH - Air handling

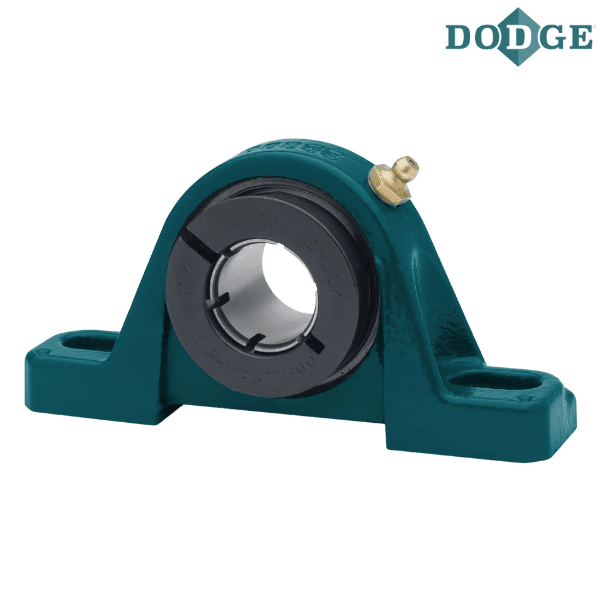

** Images are for representation purposes only
