128485 DODGE - P2B-DLMAH-208

Brand - DODGE
Item Number - 128485 DODGE - P2B-DLMAH-208
Category - D-LOK® Ball Bearings (DLMAH Medium Duty Air Handling Pillow Blocks)
Series - 214
Shaft Size (inch) - 2.5
Description - P2B-DLMAH-208
Weight (lbs) - 19.4

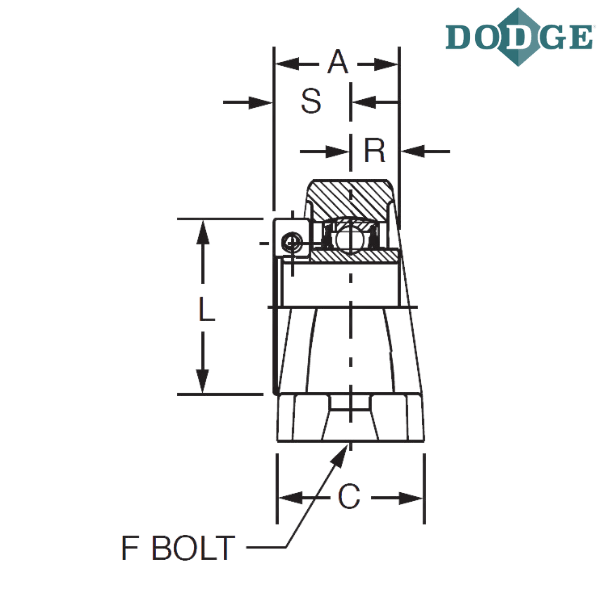

Length Through Bore (A) inch - 66

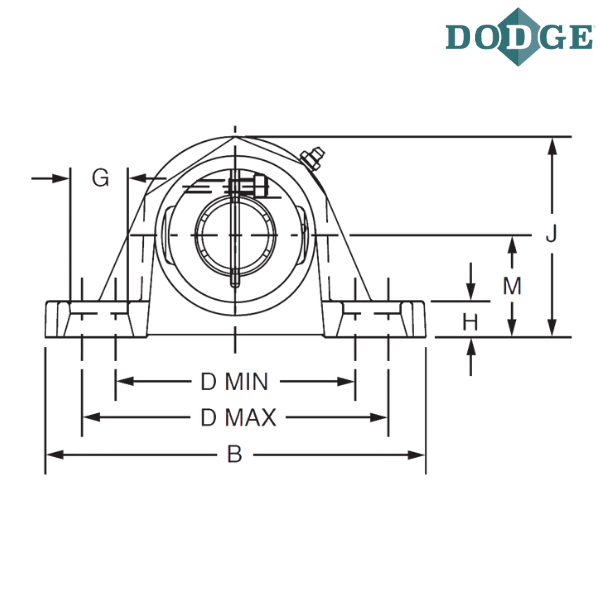

Overall Length (B) inch - 273.1
Width (C) inch - 68.3
Bolt to Bolt Minimum Distance (D min) inch - 190.5
Bolt to Bolt Maximum Distance (D max) inch - 215.9
F-Bolt Diameter (inch) - M18
G (mm) - 33.5
H (mm) - 23.9
Overall Height (J) inch - 154.7
L (mm) - 111.3
Base to Center Height (M) inch - 76.2
R (mm) - 26.9
S (mm) - 39.1

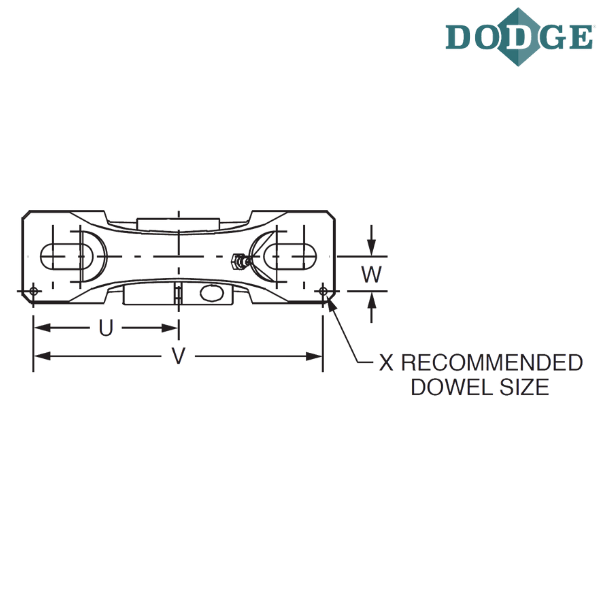

U (mm) - 124
V (mm) - 247.9
W (mm) - 23.9
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar
AH - Air handling

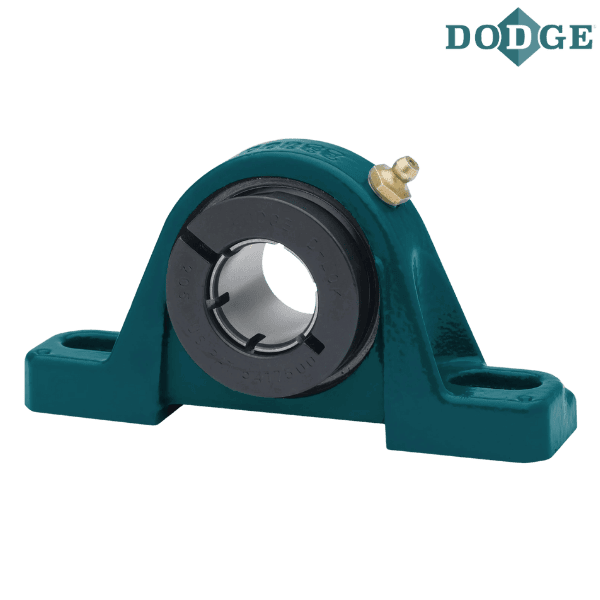

** Images are for representation purposes only
