128481 DODGE - P2B-DLMAH-200

Brand - DODGE
Item Number - 128481 DODGE - P2B-DLMAH-200
Category - D-LOK® Ball Bearings (DLMAH Medium Duty Air Handling Pillow Blocks)
Series - 211
Shaft Size (inch) - 2
Description - P2B-DLMAH-200
Weight (lbs) - 12.2

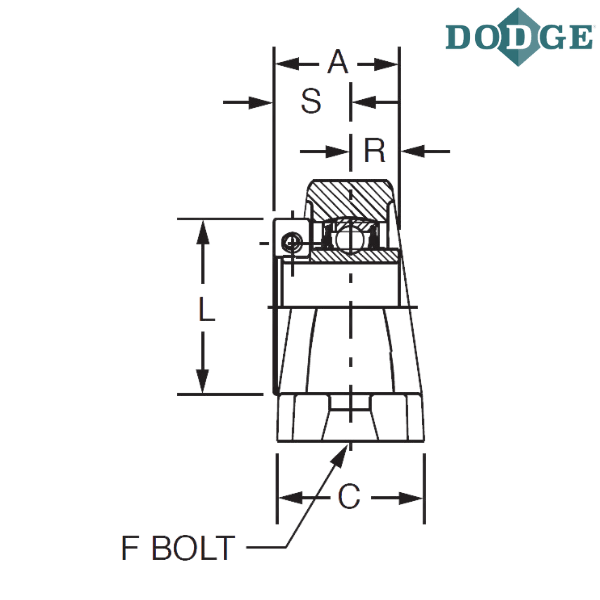

Length Through Bore (A) inch - 57.2

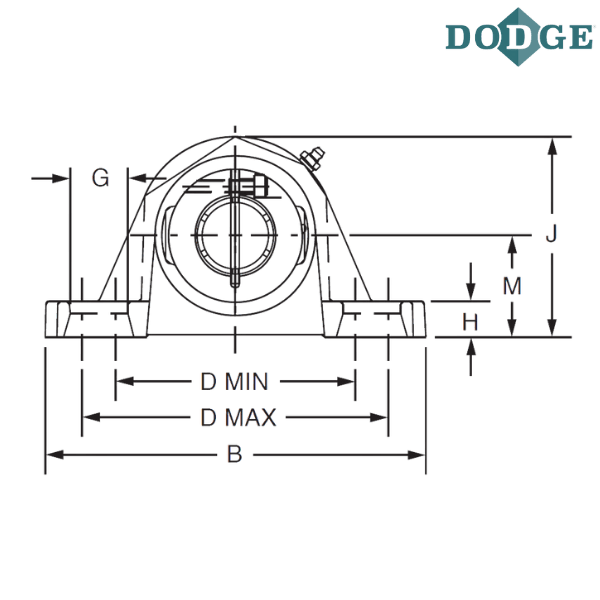

Overall Length (B) inch - 225.6
Width (C) inch - 58.4
Bolt to Bolt Minimum Distance (D min) inch - 162.1
Bolt to Bolt Maximum Distance (D max) inch - 189
F-Bolt Diameter (inch) - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) inch - 126
L (mm) - 93.7
Base to Center Height (M) inch - 63.5
R (mm) - 22.4
S (mm) - 34.8

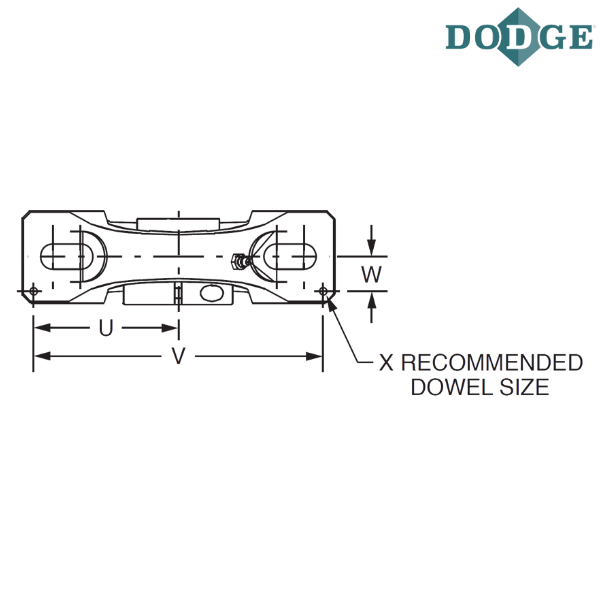

U (mm) - 100.1
V (mm) - 200.2
W (mm) - 20.6
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar
AH - Air handling

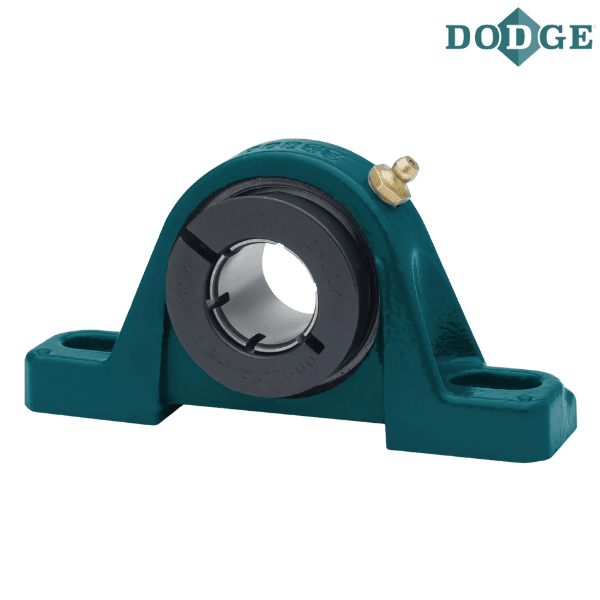

** Images are for representation purposes only
