128476 DODGE - P2B-DLMAH-107

Brand - DODGE
Item Number - 128476 DODGE - P2B-DLMAH-107
Category - D-LOK® Ball Bearings (DLMAH Medium Duty Air Handling Pillow Blocks)
Series - 208
Shaft Size (inch) - 1.4375
Description - P2B-DLMAH-107
Weight (lbs) - 7.2

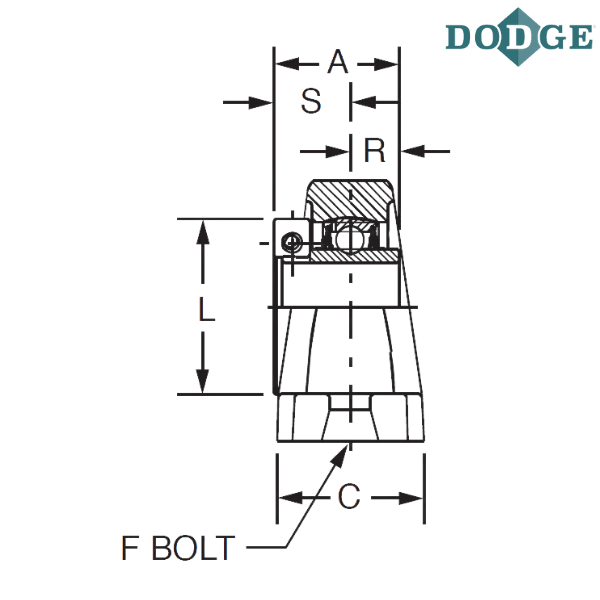

Length Through Bore (A) inch - 2.01
Length Through Bore (A) mm - 51.1

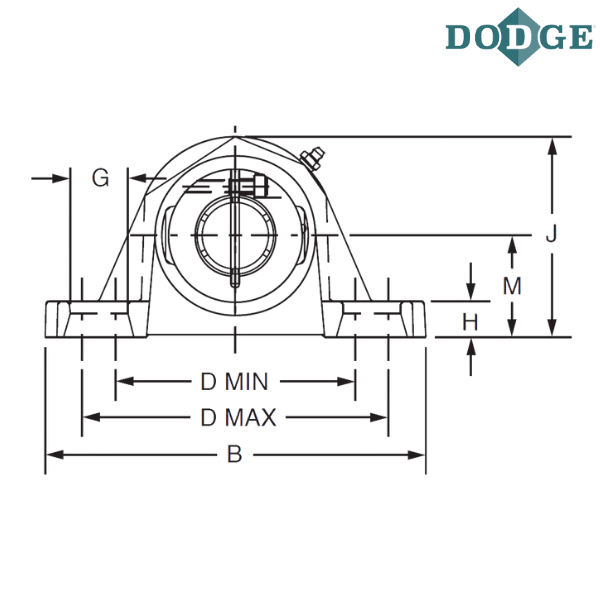

Overall Length (B) inch - 7.25
Overall Length (B) mm - 184.2
Width (C) inch - 1.93
Width (C) mm - 49
Bolt to Bolt Minimum Distance (D min) inch - 5.18
Bolt to Bolt Minimum Distance (D min) mm - 131.6
Bolt to Bolt Maximum Distance (D max) inch - 5.88
Bolt to Bolt Maximum Distance (D max) mm - 149.4
F-Bolt Diameter (inch) - 0.5
F-Bolt Diameter - M12
G (inch) - 0.91
G (mm) - 23.1
H (inch) - 0.93
H (mm) - 23.6
Overall Height (J) inch - 4.19
Overall Height (J) mm - 106.4
L (inch) - 2.74
L (mm) - 69.6
Base to Center Height (M) inch - 2.13
Base to Center Height (M) mm - 54
R (inch) - 0.75
R (mm) - 19.1
S (inch) - 1.26
S (mm) - 32

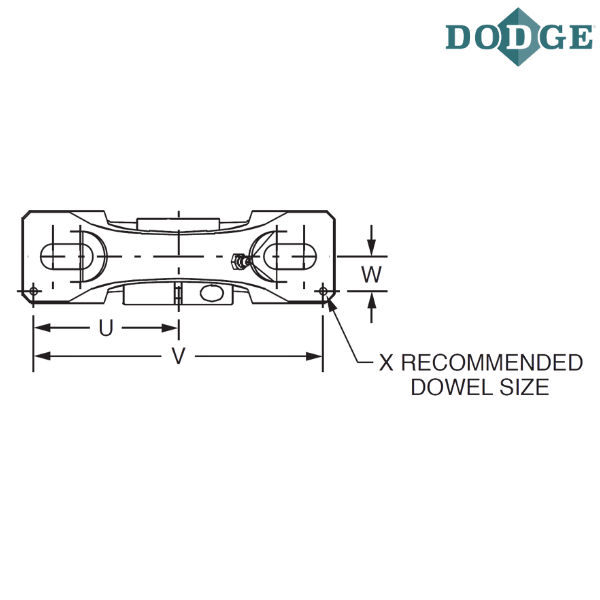

U (inch) - 3.26
U (mm) - 82.8
V (inch) - 6.52
V (mm) - 165.6
W (inch) - 0.69
W (mm) - 17.5
X (inch) - 0.12
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

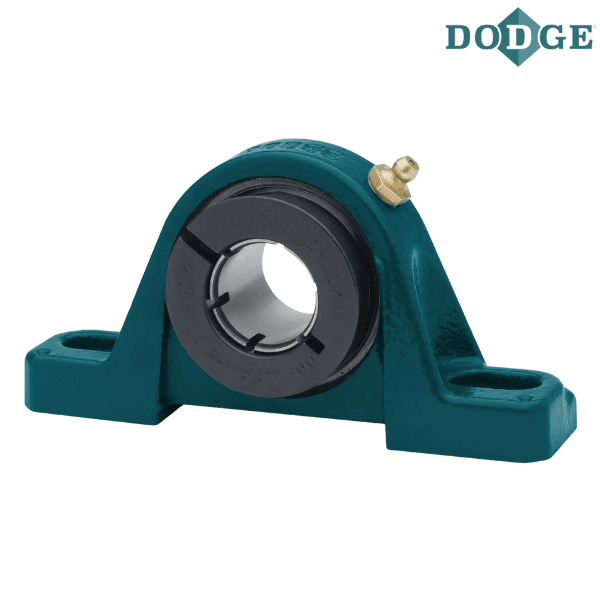

P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar
AH - Air handling

** Images are for representation purposes only
