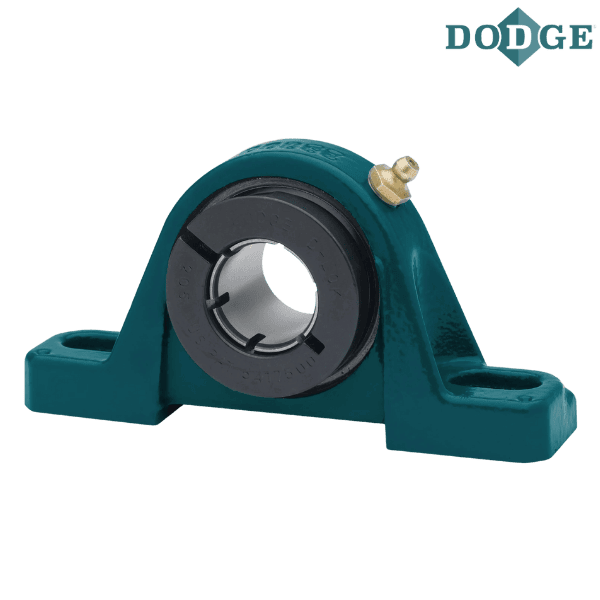

128475 DODGE - P2B-DLMAH-103

Brand - DODGE
Item Number - 128475 DODGE - P2B-DLMAH-103
Category - D-LOK® Ball Bearings (DLMAH Medium Duty Air Handling Pillow Blocks)
Series - 207
Shaft Size (inch) - 1.1875
Description - P2B-DLMAH-103
Weight (lbs) - 5.6

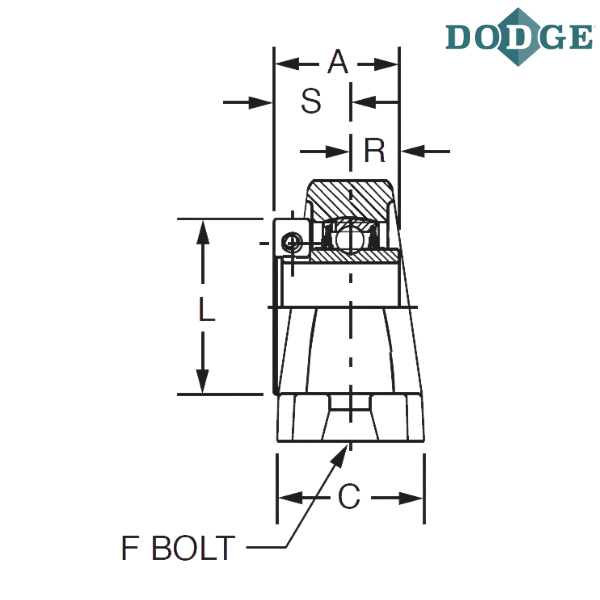

Length Through Bore (A) inch - 1.75

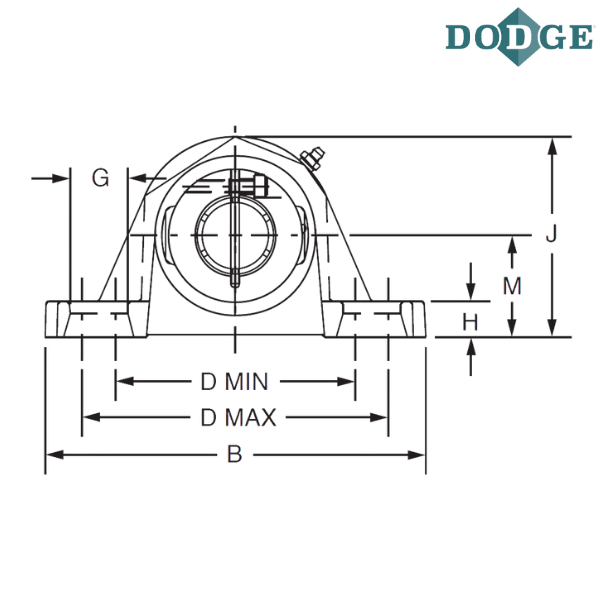

Overall Length (B) inch - 6.5
Width (C) inch - 1.75
Bolt to Bolt Minimum Distance (D min) inch - 4.68
Bolt to Bolt Maximum Distance (D max) inch - 5.44
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.94
H (inch) - 0.71
Overall Height (J) inch - 3.75
L (inch) - 2.69
Base to Center Height (M) inch - 1.88
R (inch) - 0.67
S (inch) - 1.08

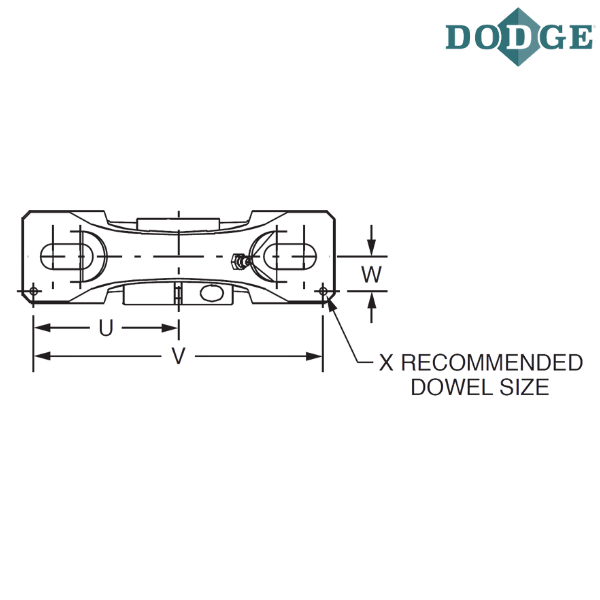

U (inch) - 2.91
V (inch) - 5.82
W (inch) - 0.56
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar
AH - Air handling

** Images are for representation purposes only
