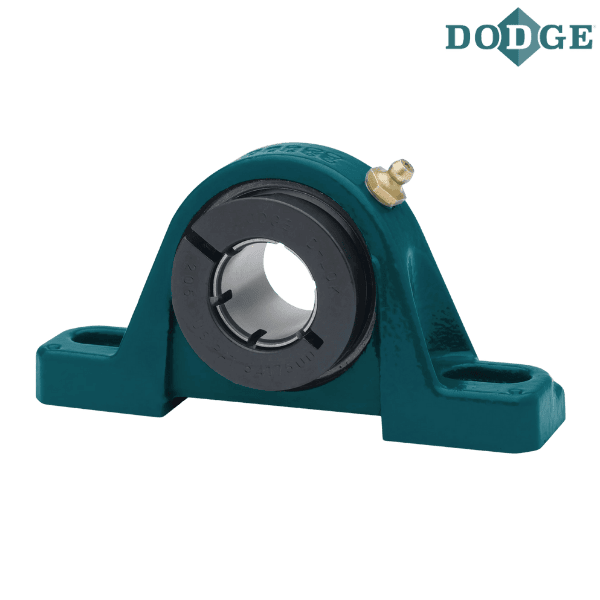

128452 DODGE - P2B-DLAH-211

Brand - DODGE
Item Number - 128452 DODGE - P2B-DLAH-211
Category - D-LOK® Ball Bearings (DLAH Normal Duty Air Handling Pillow Blocks)
Series - 214
Shaft Size (inch) - 2.6875
Description - P2B-DLAH-211
Weight (lbs) - 19.3

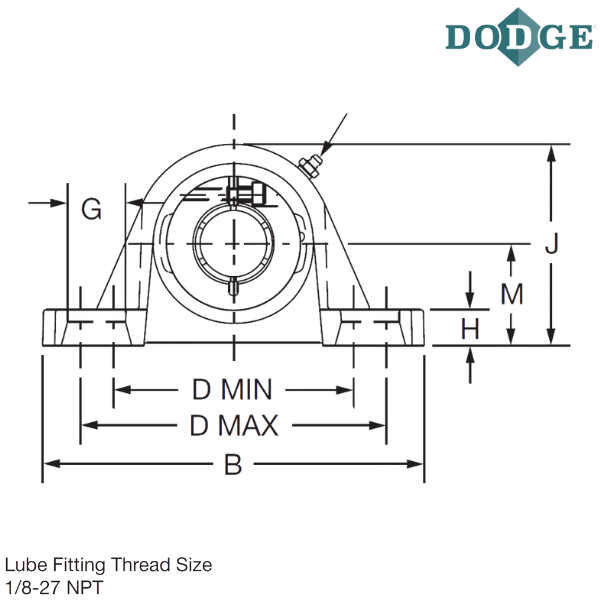

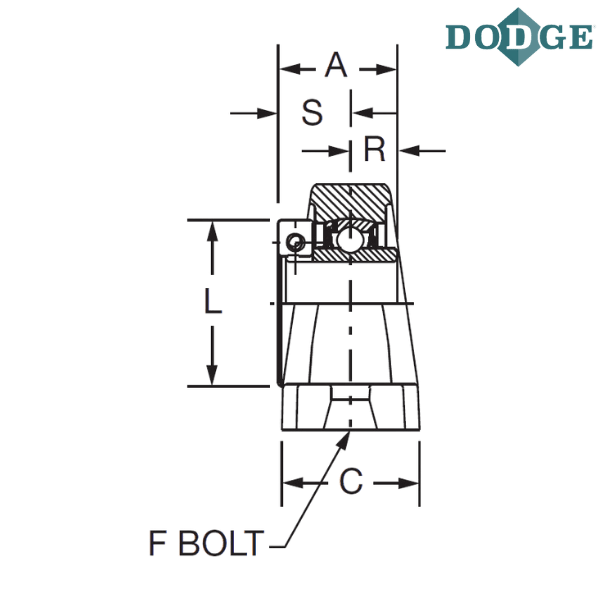

Length Through Bore (A) inch - 2.6
Overall Length (B) inch - 10.75
Width (C) inch - 2.69
Bolt to Bolt Minimum Distance (D min) inch - 7.5
Bolt to Bolt Maximum Distance (D max) inch - 8.5
F-Bolt Diameter (inch) - 45385
G (inch) - 1.32
H (inch) - 0.94
Overall Height (J) inch - 6.09
L (inch) - 4.38
Base to Center Height (M) inch - 3
R (inch) - 1.06
S (inch) - 1.54

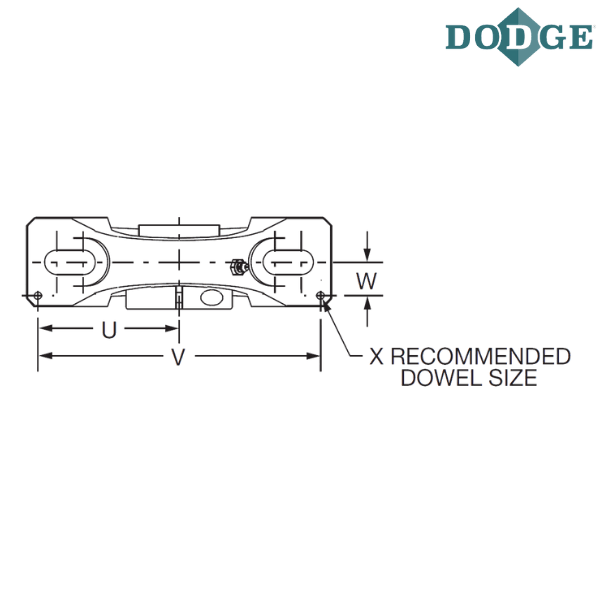

U (inch) - 4.88
V (inch) - 9.76
W (inch) - 0.94
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
AH - Air handling

** Images are for representation purposes only
