Description
Brand - DODGE

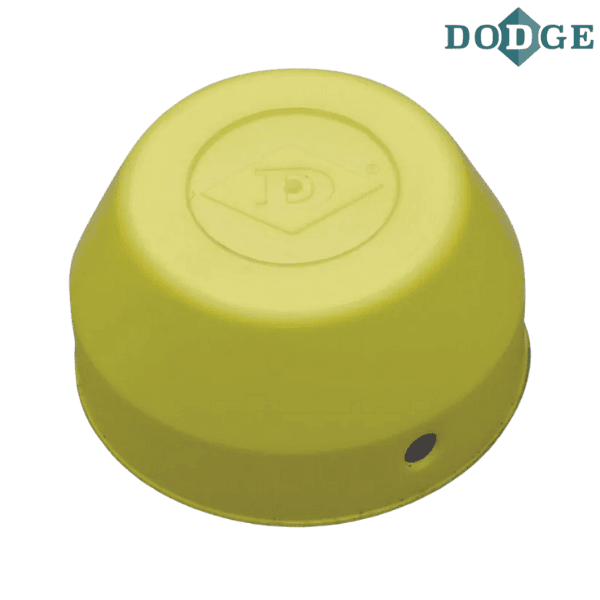

Item Number - 128286 DODGE - EC-210-Y
Category - Closed End Cover
Series - 210
Description - EC-210-Y
For Possible Shaft Sizes : 1.9375 inch

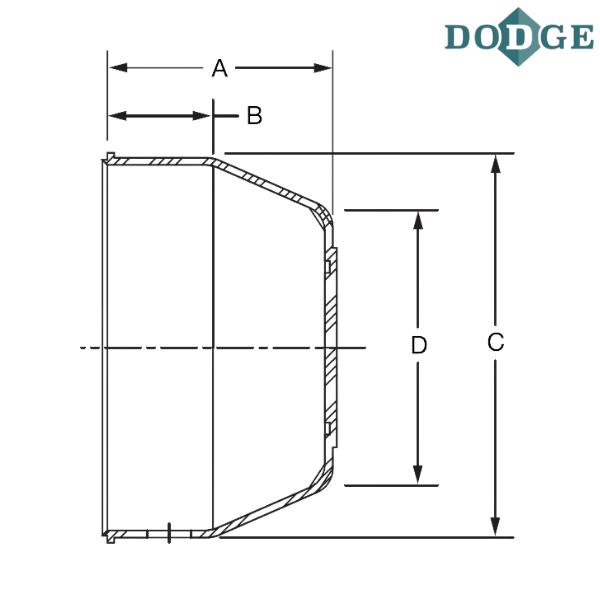

A (inch) - 1.66
B (inch) - 0.91
C (inch) - 3.63
D (inch) - 3
For Possible Shaft Sizes : 50 mm
A (mm) - 42.2
B (mm) - 23.1
C (mm) - 91.4
D (mm) - 76.2
** Images are for representation purposes only
