Description

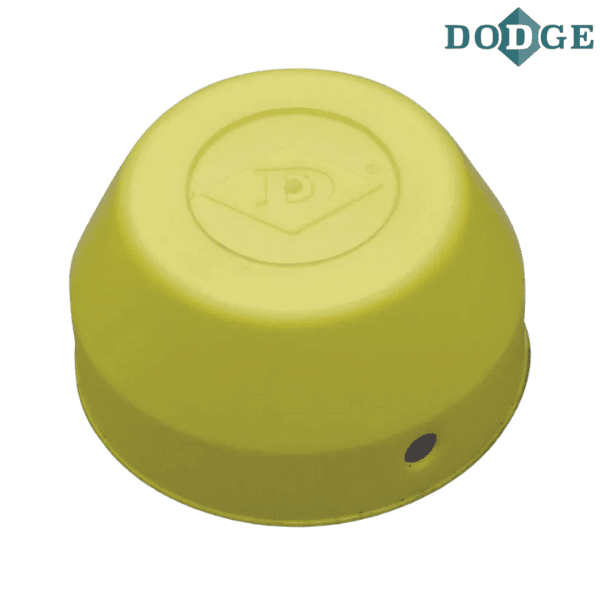

Brand - DODGE
Item Number - 128284 DODGE - EC-208-Y
Category - Closed End Cover
Series - 208
Description - EC-208-Y

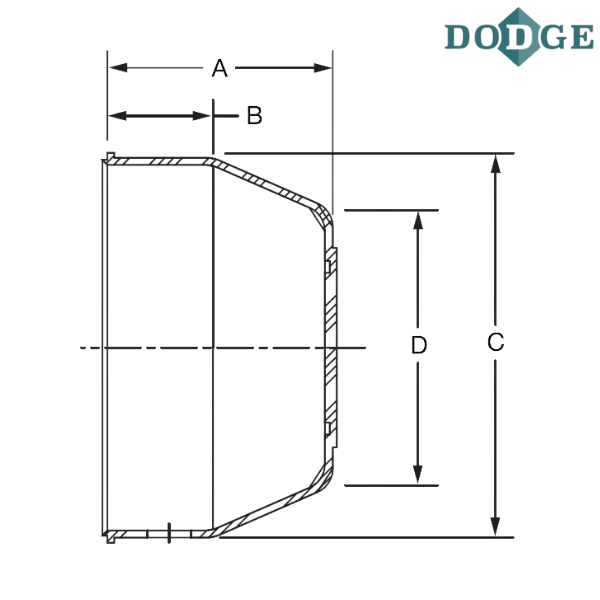

For Possible Shaft Sizes : 1.5 inch
A (inch) - 1.55
B (inch) - 0.69
C (inch) - 3.31
D (inch) - 2.77
For Possible Shaft Sizes : 40 mm
A (mm) - 39.1
B (mm) - 17.5
C (mm) - 84.1
D (mm) - 70.1
** Images are for representation purposes only
