Description
Brand - DODGE

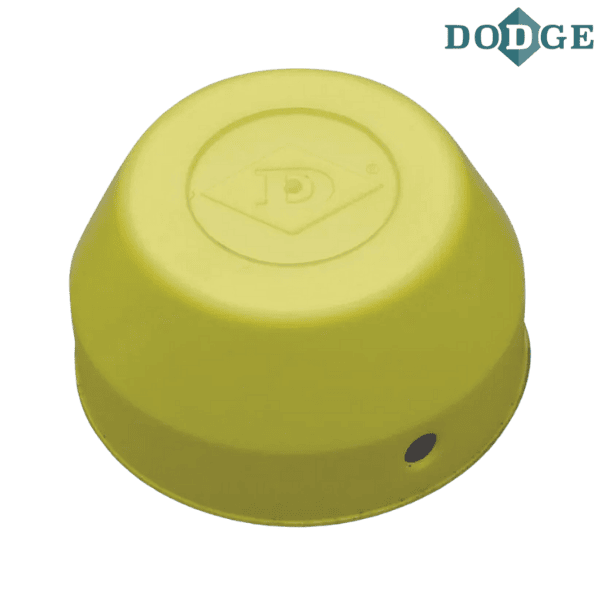

Item Number - 128282 DODGE - EC-206-Y
Category - Closed End Cover
Series - 206
Description - EC-206-Y
For Possible Shaft Sizes : 1.1875 inch, 1.25 inch

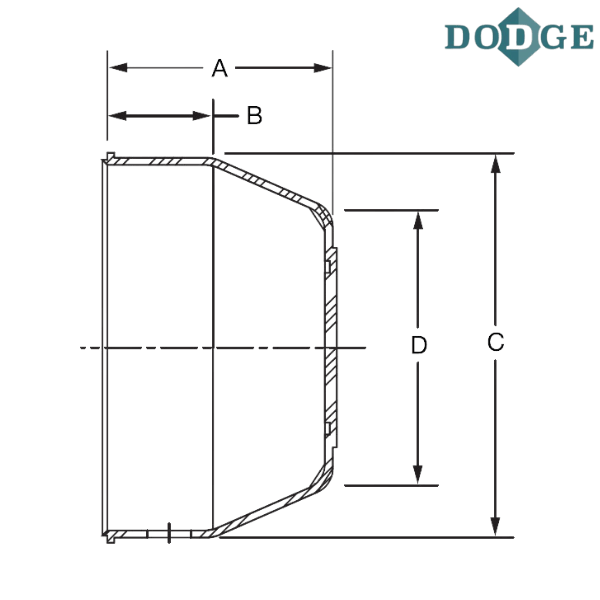

A (inch) - 1.33
B (inch) - 0.56
C (inch) - 2.5
D (inch) - 0.97
For Possible Shaft Sizes : 30mm
A (mm) - 33.8
B (mm) - 14.2
C (mm) - 63.5
D (mm) - 50
** Images are for representation purposes only
