Description
Brand - DODGE
Item Number - 128280 DODGE - EC-204-Y
Category - Closed End Cover
Series - 204
Description - EC-204-Y
For Possible Shaft Sizes : 0.75 inch

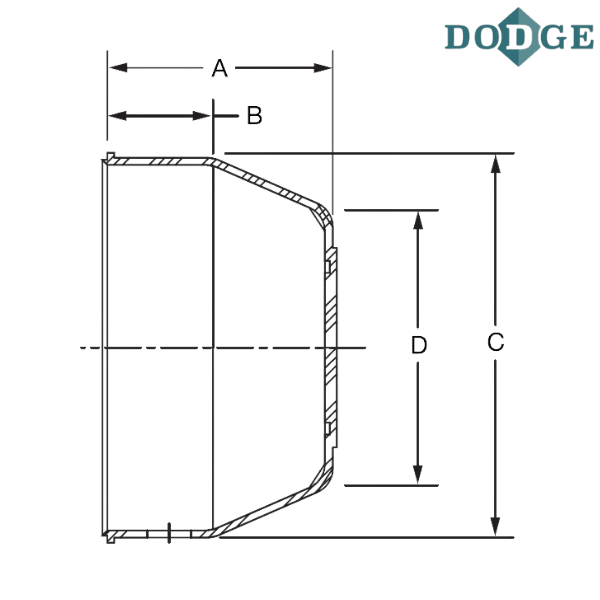

A (inch) - 1.13
B (inch) - 0.53
C (inch) - 1.91
D (inch) - 1.38
For Possible Shaft Sizes : 20 mm
A (mm) - 28.7
B (mm) - 13.5
C (mm) - 48.4
D (mm) - 35.1

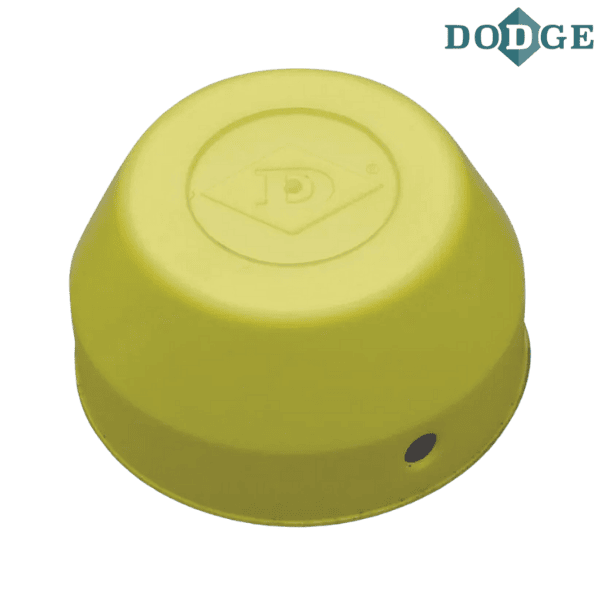

** Images are for representation purposes only
