128219 DODGE - EC-212-X

Brand - DODGE
Item Number - 128219 DODGE - EC-212-X
Category - Ball Bearing End Covers for Mounted Units Other than Pillow Blocks and Tapped Base Units
Series - 212
Description - EC-212-X

For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (inch) : 2.25 - 2.4375
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (inch) : - 2.1875 - 2.25
Weight (lbs) - 0.27

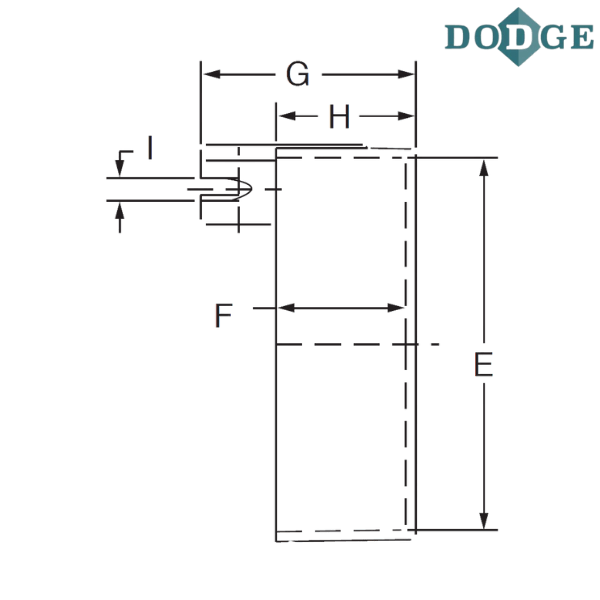

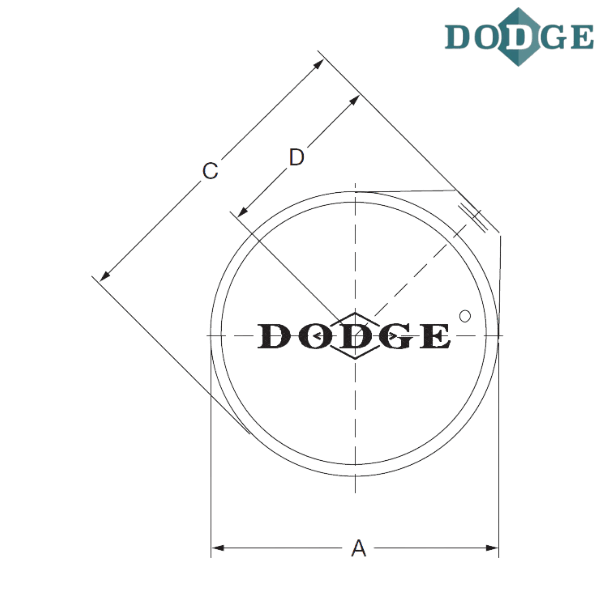

A (inch) - 4.921875
C (inch) - 5.46875
D (inch) - 2.75
E (inch) - 4.609375
F (inch) - 1.546875
G (inch) - 2.6875
H (inch) - 1.75
I (inch) - 0.40625

For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (mm) : 60
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (mm) : 55
Weight (kg) - 0.124
A (mm) - 125.0
C (mm) - 138.7
D (mm) - 69.9
E (mm) - 117.1
F (mm) - 39.1
G (mm) - 68.3
H (mm) - 44.5
I (mm) - 10.4

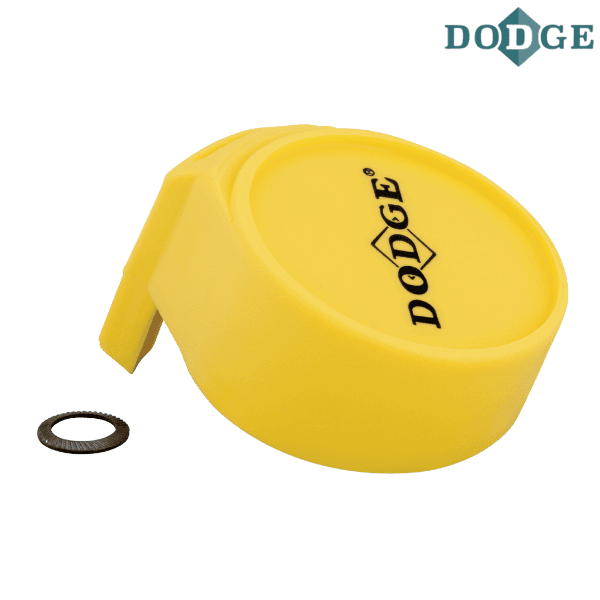

** Images are for representation purposes only
