128217 DODGE - EC-211-X

Brand - DODGE
Item Number - 128217 DODGE - EC-211-X
Category - Ball Bearing End Covers for Mounted Units Other than Pillow Blocks and Tapped Base Units
Series - 211
Description - EC-211-X

For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (inch) : 2 - 2.25
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (inch) : - 1.9375 and 2
Weight (lbs) - 0.24

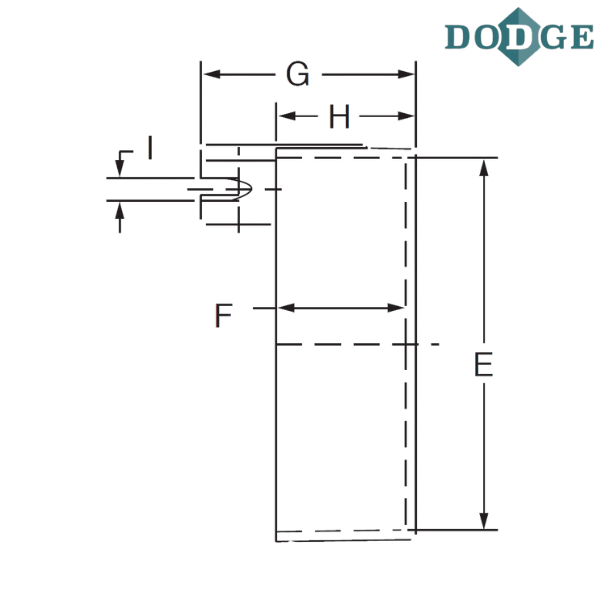

A (inch) - 4.421875
C (inch) - 5.0625
D (inch) - 2.59375
E (inch) - 4.125
F (inch) - 1.453125
G (inch) - 2.578125
H (inch) - 1.65625
I (inch) - 0.453125

For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (mm) : 55
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (mm) : 50
Weight (kg) - 0.108
A (mm) - 112.3
C (mm) - 128.5
D (mm) - 66.0
E (mm) - 104.7
F (mm) - 36.8
G (mm) - 65.3
H (mm) - 42.2
I (mm) - 11.4

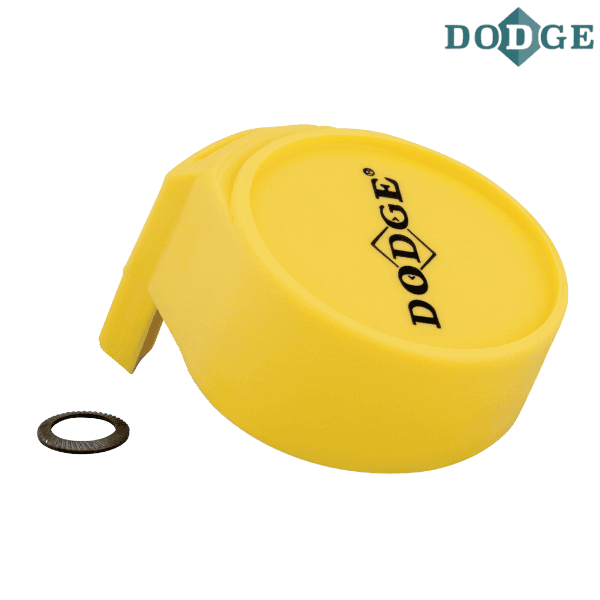

** Images are for representation purposes only
