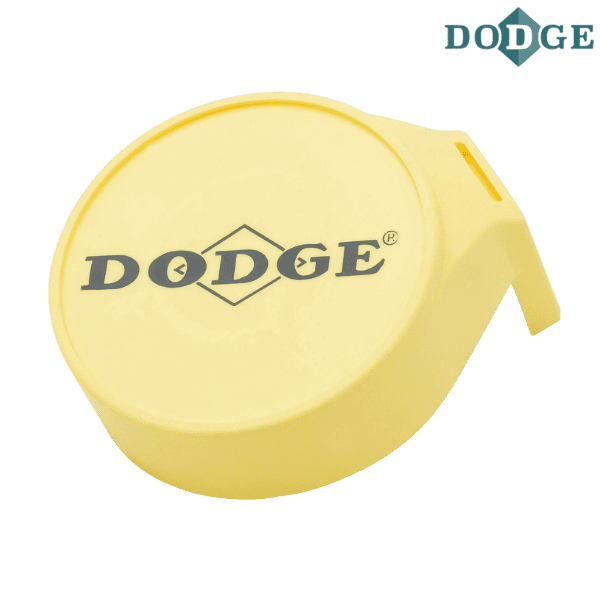

128216 DODGE - EC-211-P

Brand - DODGE
Item Number - 128216 DODGE - EC-211-P
Category - Ball Bearing End Covers for Pillow Blocks and Tapped Base Units
Series - 211
Description - EC-211-P

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (inch) : 2 - 2.25
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (inch) : - 1.9375 and 2
Weight (lbs) - 0.22

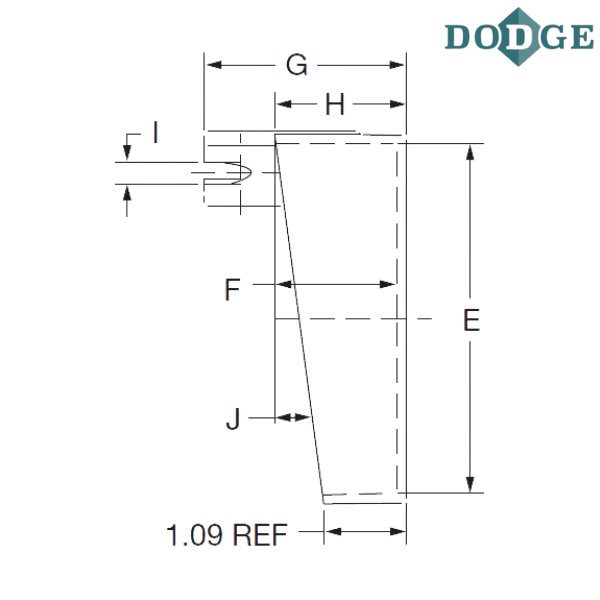

A (inch) - 4.421875
C (inch) - 5.0625
D (inch) - 2.59375
E (inch) - 4.125
F (inch) - 1.40625
G (inch) - 2.578125
H (inch) - 1.625
I (inch) - 0.453125
J - 7º

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (mm) : 55
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (mm) : - 50
Weight (kg) - 0.102
A (mm) - 112.3
C (mm) - 128.5
D (mm) - 66
E (mm) - 104.7
F (mm) - 35.8
G (mm) - 65.3
H (mm) - 41.2
I (mm) - 11.4
J - 7º

Notes :
P - Polymer housing

** Images are for representation purposes only
