128215 DODGE - EC-210-X

Brand - DODGE
Item Number - 128215 DODGE - EC-210-X
Category - Ball Bearing End Covers for Mounted Units Other than Pillow Blocks and Tapped Base Units
Series - 210
Description - EC-210-X

For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (inch) : 1.9375 and 2
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (inch) : - 1.6875 and 1.75
Weight (lbs) - 0.18

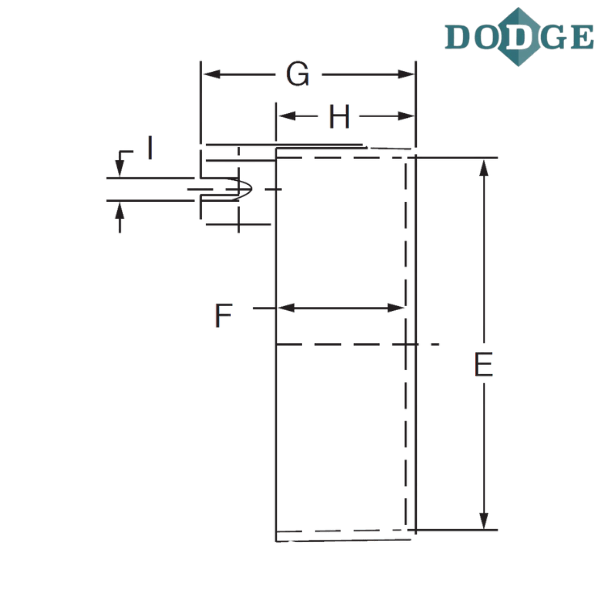

A (inch) - 3.875
C (inch) - 4.5
D (inch) - 2.328125
E (inch) - 3.5625
F (inch) - 1.359375
G (inch) - 2.515625
H (inch) - 1.5625
I (inch) - 0.484375

For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (mm) : 50
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (mm) : 45
Weight (kg) - 0.082
A (mm) - 98.6
C (mm) - 114.3
D (mm) - 59.2
E (mm) - 90.9
F (mm) - 34.3
G (mm) - 63.8
H (mm) - 39.6
I (mm) - 12.4

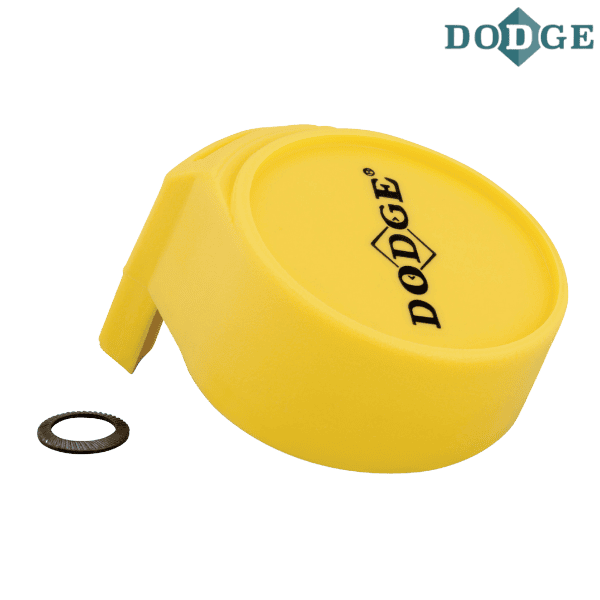

** Images are for representation purposes only
