128214 DODGE - EC-210-P

Brand - DODGE
Item Number - 128214 DODGE - EC-210-P
Category - Ball Bearing End Covers for Pillow Blocks and Tapped Base Units
Series - 210
Description - EC-210-P

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (inch) : 1.9375 and 2
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (inch) : - 1.6875 - 1.75
Weight (lbs) - 0.17

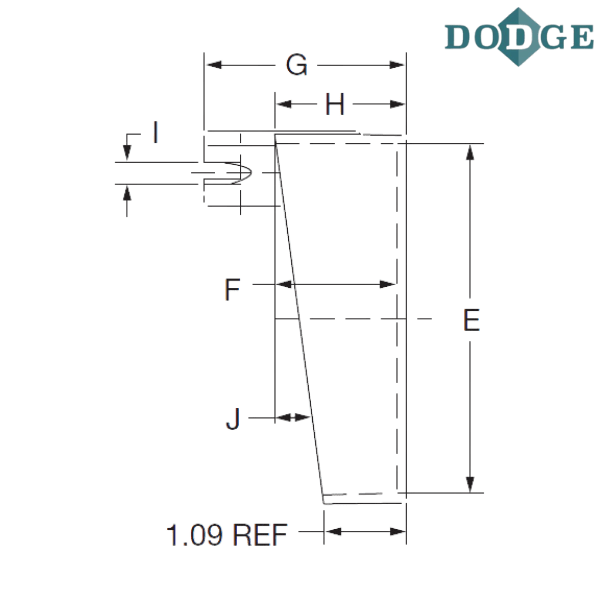

A (inch) - 3.875
C (inch) - 4.5
D (inch) - 2.59375
E (inch) - 3.578125
F (inch) - 1.359375
G (inch) - 2.5
H (inch) - 1.5625
I (inch) - 0.484375
J - 9º

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (mm) : 50
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (mm) : - 45
Weight (kg) - 0.078
A (mm) - 98.6
C (mm) - 114.3
D (mm) - 59.2
E (mm) - 90.9
F (mm) - 34.3
G (mm) - 63.5
H (mm) - 39.6
I (mm) - 12.5
J - 9º

Notes :

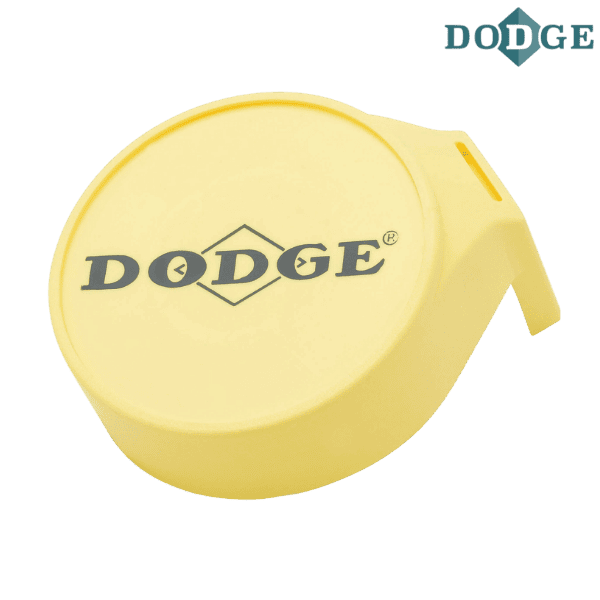

P - Polymer housing

** Images are for representation purposes only
