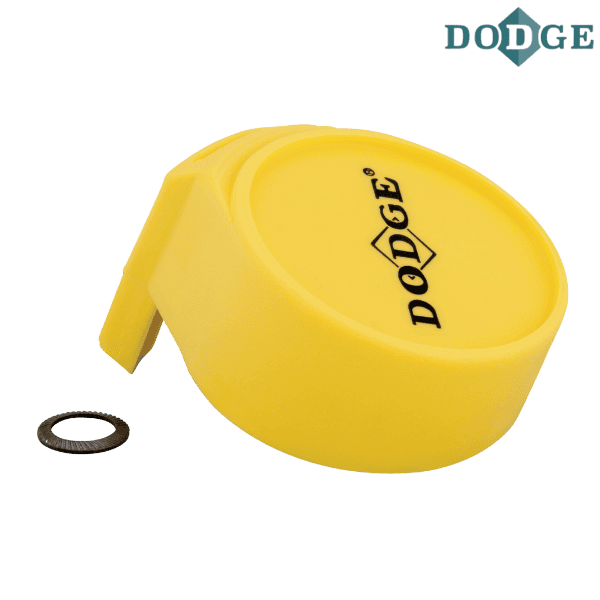

128213 DODGE - EC-209-X

Brand - DODGE
Item Number - 128213 DODGE - EC-209-X
Category - Ball Bearing End Covers for Mounted Units Other than Pillow Blocks and Tapped Base Units
Series - 209
Description - EC-209-X

For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (inch) : 1.625 - 1.75
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (inch) : - 1.5
Weight (lbs) - 0.16

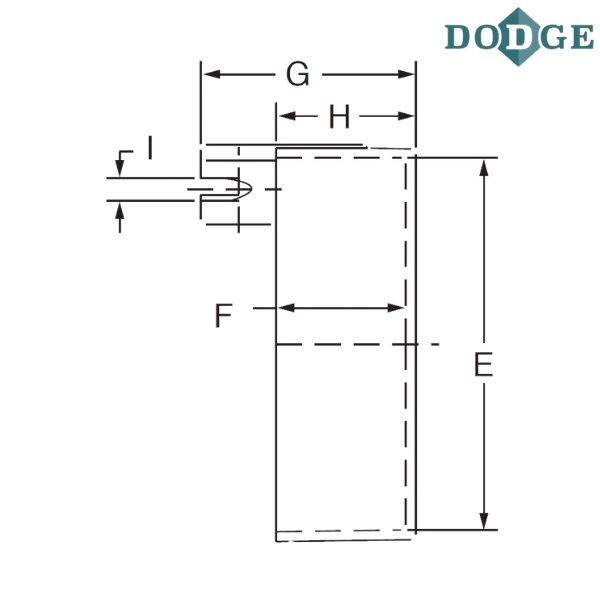

A (inch) - 3.6875
C (inch) - 4.064394
D (inch) - 2.171875
E (inch) - 3.40625
F (inch) - 1.359375
G (inch) - 2.328125
H (inch) - 1.53125
I (inch) - 0.390625

For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (mm) : 45
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (mm) : 40
Weight (kg) - 0.073
A (mm) - 93.7
C (mm) - 108.2
D (mm) - 55.1
E (mm) - 86.6
F (mm) - 34.3
G (mm) - 59.2
H (mm) - 38.9
I (mm) - 9.9

** Images are for representation purposes only
