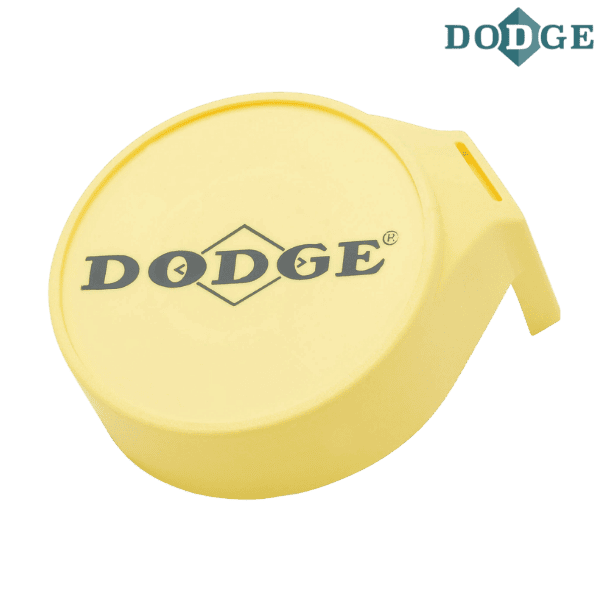

128212 DODGE - EC-209-P

Brand - DODGE
Item Number - 128212 DODGE - EC-209-P
Category - Ball Bearing End Covers for Pillow Blocks and Tapped Base Units
Series - 209
Description - EC-209-P

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (inch) : 1.625 - 1.75
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (inch) : - 1.5
Weight (lbs) - 0.15

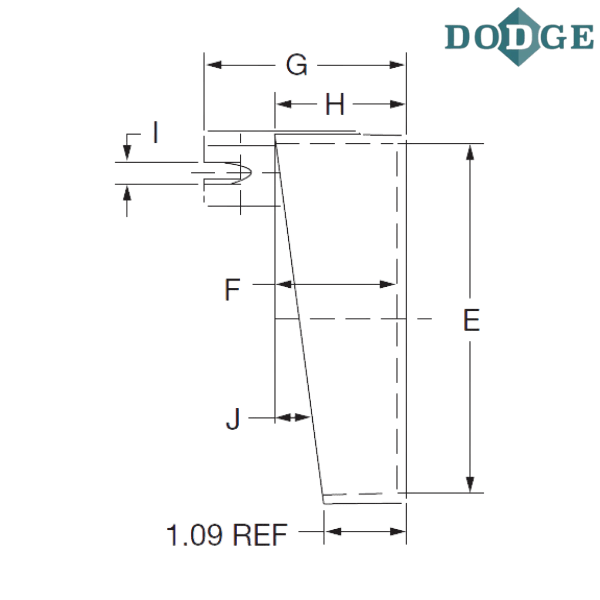

A (inch) - 3.6875
C (inch) - 4.265625
D (inch) - 2.171875
E (inch) - 3.40625
F (inch) - 1.328125
G (inch) - 2.328125
H (inch) - 1.53125
I (inch) - 0.390625
J - 7º

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (mm) : 45
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (mm) : - 40
Weight (kg) - 0.069
A (mm) - 93.7
C (mm) - 108.2
D (mm) - 55.1
E (mm) - 86.6
F (mm) - 33.8
G (mm) - 59.2
H (mm) - 38.9
I (mm) - 9.9
J - 7º

Notes :
P - Polymer housing

** Images are for representation purposes only
