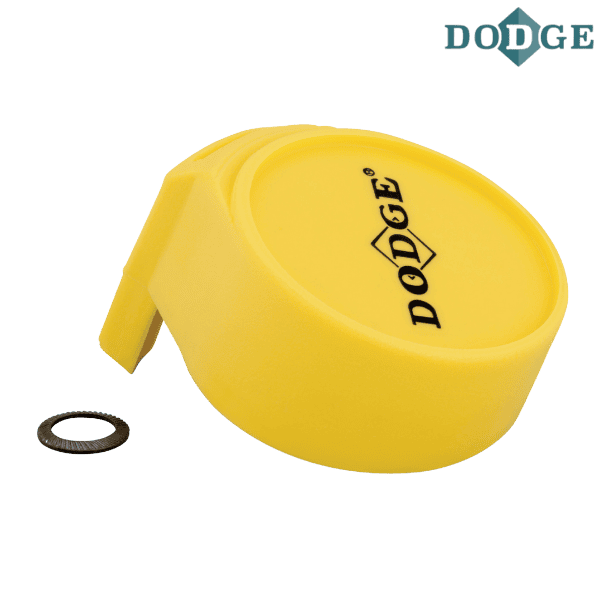

128211 DODGE - EC-208-X

Brand - DODGE
Item Number - 128211 DODGE - EC-208-X
Category - Ball Bearing End Covers for Mounted Units Other than Pillow Blocks and Tapped Base Units
Series - 208
Description - EC-208-X

For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (inch) : 1.5 - 1.625
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (inch) : - 2.4375
Weight (lbs) - 0.14

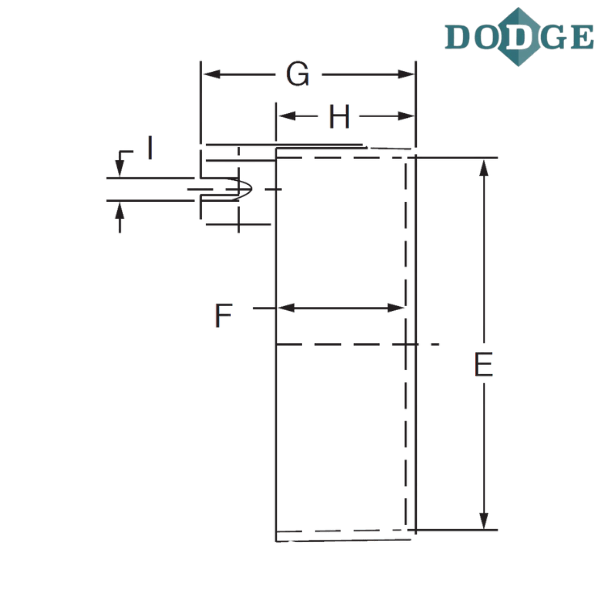

A (inch) - 3.375
C (inch) - 4
D (inch) - 2.0625
E (inch) - 3.109375
F (inch) - 1.296875
G (inch) - 2.40625
H (inch) - 1.5
I (inch) - 0.421875

For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (mm) : 40
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (mm) : 35
Weight (kg) - 0.064
A (mm) - 85.9
C (mm) - 101.6
D (mm) - 52.3
E (mm) - 79.0
F (mm) - 33.0
G (mm) - 61.0
H (mm) - 38.1
I (mm) - 10.7

** Images are for representation purposes only
