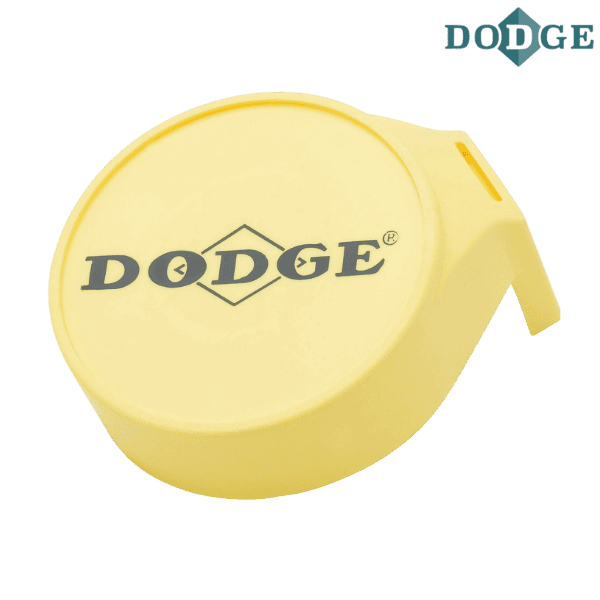

128210 DODGE - EC-208-P

Brand - DODGE
Item Number - 128210 DODGE - EC-208-P
Category - Ball Bearing End Covers for Pillow Blocks and Tapped Base Units
Series - 208
Description - EC-208-P

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (inch) : 1.5 - 1.625
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (inch) : - 1.4375
Weight (lbs) - 0.13

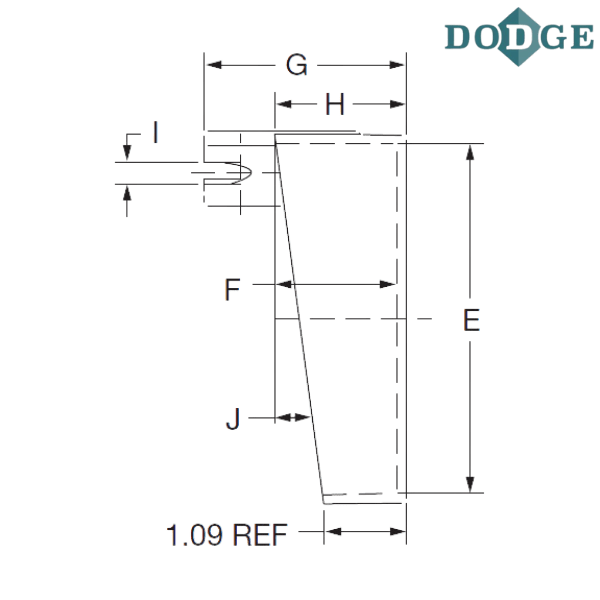

A (inch) - 3.375
C (inch) - 4
D (inch) - 2.0625
E (inch) - 3.109375
F (inch) - 1.296875
G (inch) - 2.40625
H (inch) - 1.5
I (inch) - 0.421875
J - 6º

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (mm) : 40
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (mm) : - 35
Weight (kg) - 0.061
A (mm) - 85.9
C (mm) - 101.6
D (mm) - 52.3
E (mm) - 79
F (mm) - 33
G (mm) - 61
H (mm) - 38.1
I (mm) - 10.7
J - 6º

Notes :
P - Polymer housing

** Images are for representation purposes only
