Description
Brand - DODGE
Item Number - 128209 DODGE - EC-207-X
Category - Ball Bearing End Covers for Mounted Units Other than Pillow Blocks and Tapped Base Units
Series - 207
Description - EC-207-X
For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (inch) : 1.25 - 1.4375
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (inch) : - 1.1875 and 1.25
Weight (lbs) - 0.12

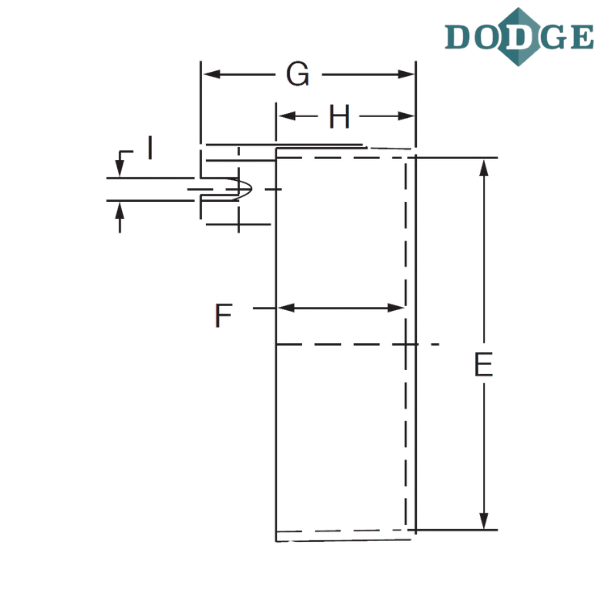

A (inch) - 3.25
C (inch) - 3.84375
D (inch) - 1.96875
E (inch) - 3.015625
F (inch) - 1.34375
G (inch) - 2.34375
H (inch) - 1.53125
I (inch) - 0.375
For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (mm) : 35
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (mm) : 30
Weight (kg) - 0.053
A (mm) - 82.6
C (mm) - 97.5
D (mm) - 50.0
E (mm) - 76.7
F (mm) - 34.5
G (mm) - 59.4
H (mm) - 38.9
I (mm) - 9.4

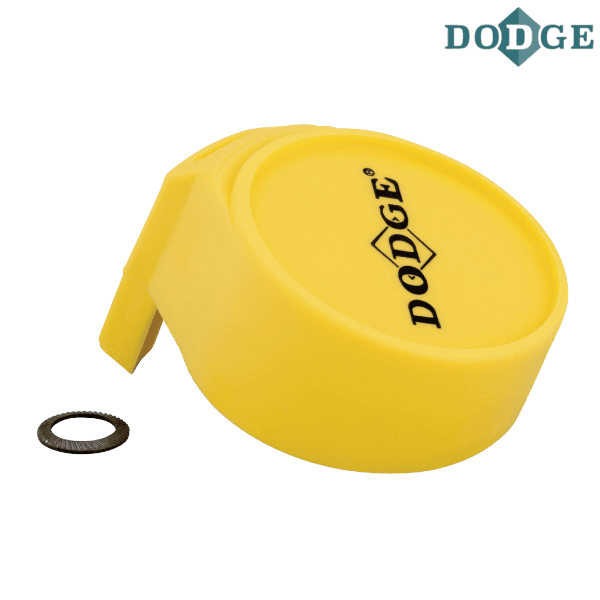

** Images are for representation purposes only
