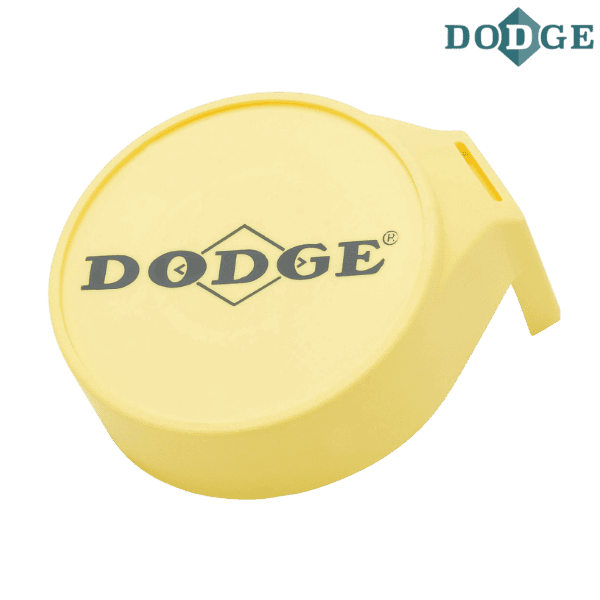

128208 DODGE - EC-207-P

Brand - DODGE
Item Number - 128208 DODGE - EC-207-P
Category - Ball Bearing End Covers for Pillow Blocks and Tapped Base Units
Series - 207
Description - EC-207-P

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (inch) : 1.25 - 1.4375
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (inch) : - 1.1875 - 1.25
Weight (lbs) - 0.11

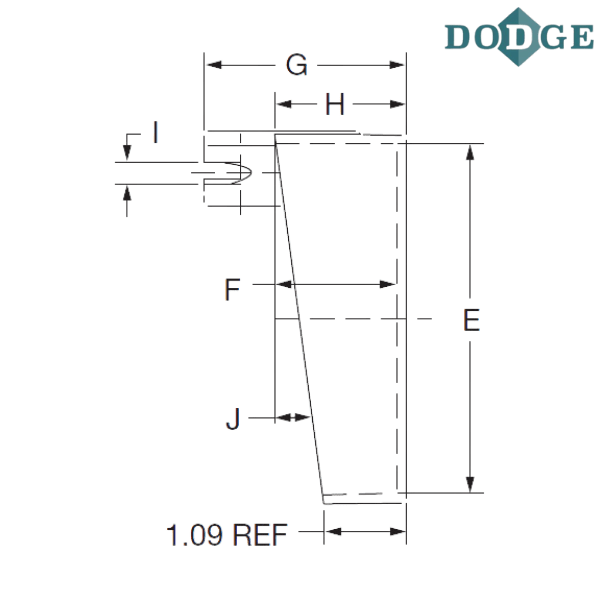

A (inch) - 3.25
C (inch) - 3.796875
D (inch) - 1.90625
E (inch) - 3.015625
F (inch) - 1.3125
G (inch) - 2.34375
H (inch) - 1.484375
I (inch) - 0.375
J - 7º 30'

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (mm) : 35
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (mm) : - 30
Weight (kg) - 0.048
A (mm) - 82.6
C (mm) - 96.3
D (mm) - 48.5
E (mm) - 76.7
F (mm) - 33.3
G (mm) - 59.4
H (mm) - 37.6
I (mm) - 9.4
J - 7º 30'

Notes :
P - Polymer housing

** Images are for representation purposes only
