Description
Brand - DODGE

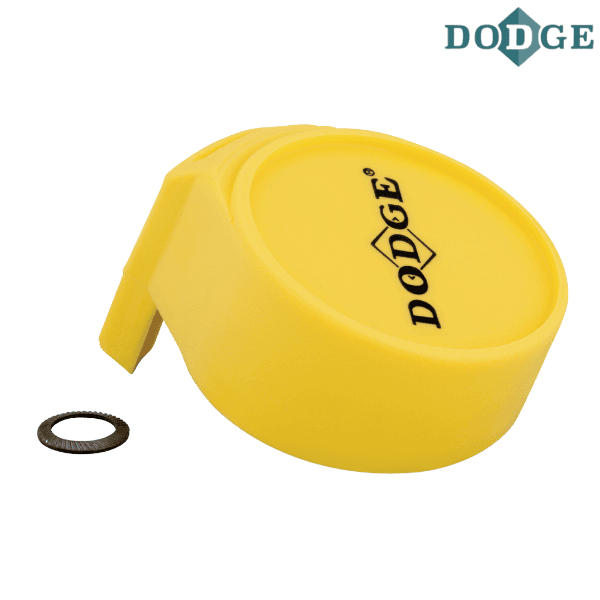

Item Number - 128207 DODGE - EC-206-X
Category - Ball Bearing End Covers for Mounted Units Other than Pillow Blocks and Tapped Base Units
Series - 206
Description - EC-206-X
For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (inch) : 1.0625 - 1.25
Weight (lbs) - 0.08

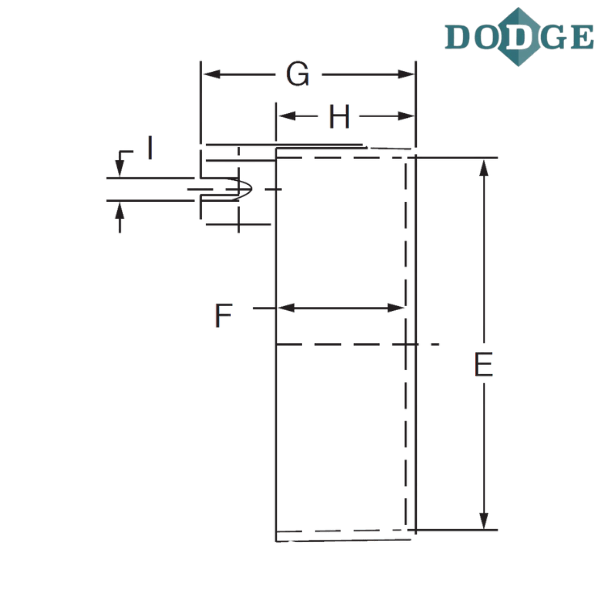

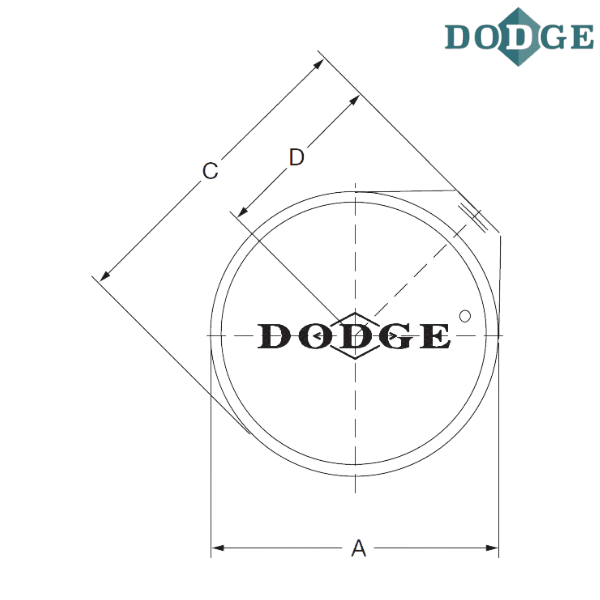

A (inch) - 2.734375
C (inch) - 3.328125
D (inch) - 1.703125
E (inch) - 2.5
F (inch) - 1.1875
G (inch) - 2.0625
H (inch) - 1.359375
I (inch) - 0.359375
For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (mm) : 30
For Possible Shaft Sizes of DLM, DLH, GTM, SCM (mm) : 25
Weight (kg) - 0.036
A (mm) - 69.3
C (mm) - 84.3
D (mm) - 43.2
E (mm) - 63.5
F (mm) - 30.2
G (mm) - 52.3
H (mm) - 34.5
I (mm) - 8.9
** Images are for representation purposes only
