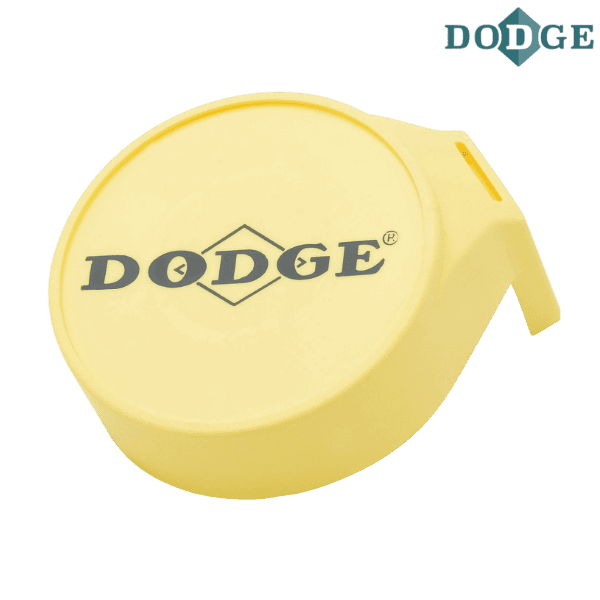

128206 DODGE - EC-206-P

Brand - DODGE
Item Number - 128206 DODGE - EC-206-P
Category - Ball Bearing End Covers for Pillow Blocks and Tapped Base Units
Series - 206
Description - EC-206-P

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (inch) : 1.0625 - 1.25
Weight (lbs) - 0.07

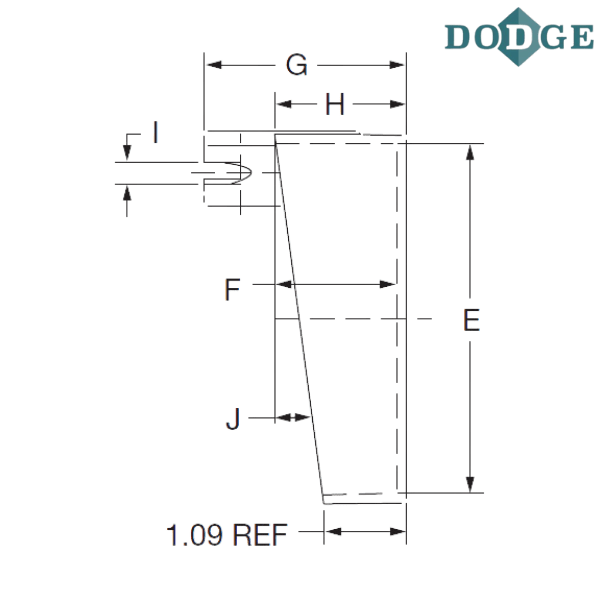

A (inch) - 2.734375
C (inch) - 3.328125
D (inch) - 1.703125
E (inch) - 2.5
F (inch) - 1.234375
G (inch) - 2.15625
H (inch) - 1.40625
I (inch) - 0.359375
J - 9º

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (mm) : 30
For Possible Shaft Sizes of DLM, DLH, GTM, SCM, SCH, SXRH (mm) : - 25
Weight (kg) - 0.034
A (mm) - 69.3
C (mm) - 84.3
D (mm) - 43.2
E (mm) - 63.5
F (mm) - 31.5
G (mm) - 54.9
H (mm) - 35.6
I (mm) - 8.9
J - 9º

Notes :
P - Polymer housing

** Images are for representation purposes only
