Description
Brand - DODGE
Item Number - 128205 DODGE - EC-205-X
Category - Ball Bearing End Covers for Mounted Units Other than Pillow Blocks and Tapped Base Units
Series - 205
Description - EC-205-X
For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (inch) : 0.875 - 1
Weight (lbs) - 0.05

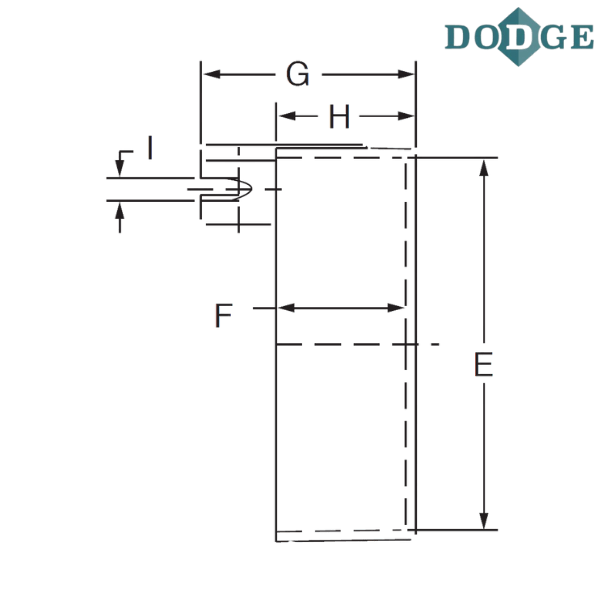

A (inch) - 2.375
C (inch) - 3.046875
D (inch) - 1.59375
E (inch) - 2.15625
F (inch) - 1.015625
G (inch) - 1.828125
H (inch) - 1.171875
I (inch) - 0.34375
For Possible Shaft Sizes of DL, GT, SC, VSC, SXR, SXV (mm) : 25
Weight (kg) - 0.024
A (mm) - 60.2
C (mm) - 77.2
D (mm) - 40.6
E (mm) - 54.9
F (mm) - 25.7
G (mm) - 46.5
H (mm) - 29.7
I (mm) - 8.7

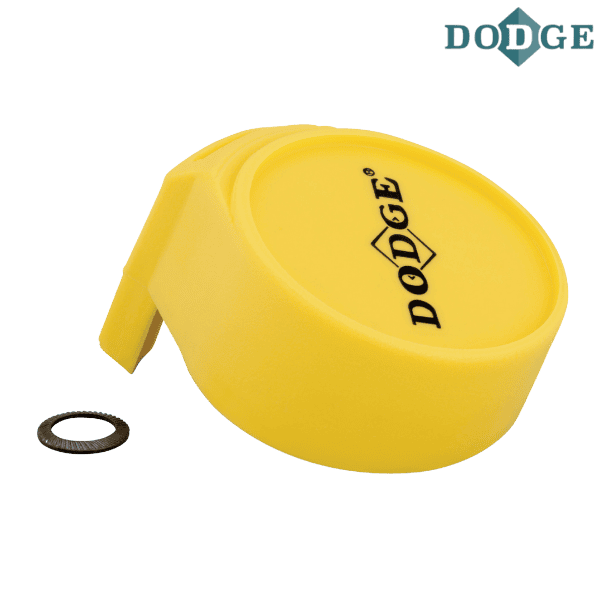

** Images are for representation purposes only
