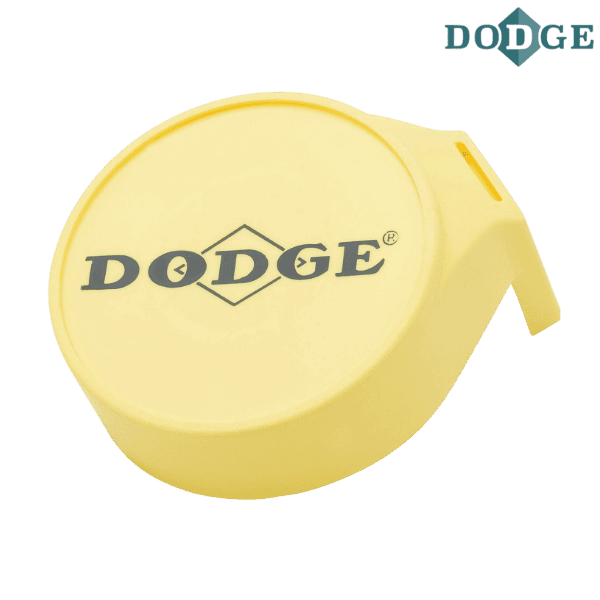

128204 DODGE - EC-205-P

Brand - DODGE
Item Number - 128204 DODGE - EC-205-P
Category - Ball Bearing End Covers for Pillow Blocks and Tapped Base Units
Series - 205
Description - EC-205-P

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (inch) : 0.875 - 1
Weight (lbs) - 0.05

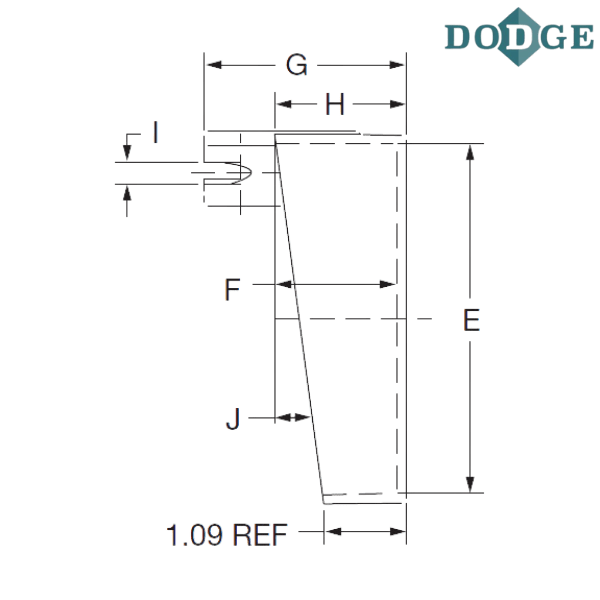

A (inch) - 2.375
C (inch) - 2.8125
D (inch) - 1.1875
E (inch) - 2.15625
F (inch) - 1.0625
G (inch) - 1.875
H (inch) - 1.21875
I (inch) - 0.34375
J - 9º

For Possible Shaft Sizes of DL, GT, SC, VSC, XR, SXR, SXV (mm) : 25
Weight (kg) - 0.023
A (mm) - 60.2
C (mm) - 71.4
D (mm) - 35
E (mm) - 54.9
F (mm) - 26.9
G (mm) - 47.8
H (mm) - 31
I (mm) - 8.6
J - 9º

Notes :
P - Polymer housing

** Images are for representation purposes only
